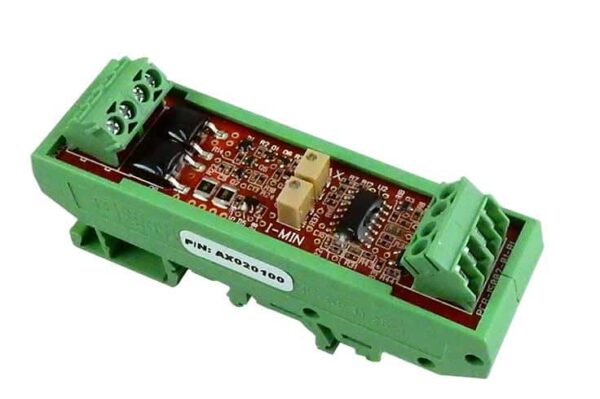

0-5VDC Analog Input, 0.3A Output Economy Valve Controller, DIN Rail Mount
Item # AX020140 — 0-5VDC Analog Input, 0.3A Output Economy Valve Controller, DIN Rail Mount
The controller simplifies control of proportional solenoids by supplying a current proportional to an input control (0-5 VDC or 10 K potentiometer or 4-20 mA). It accepts power supply voltages from 9 to 32 VDC. This linear solenoid driver utilizes high frequency switching output (PWM) to provide a direct current (DC) output. The maximum current output is 300 mA. A current sensing circuit maintains output current regardless of changes in input voltage and coil resistance. The user can adjust maximum and minimum current to suit the application. Dither frequency and amplitude are factory set. In this economy version of the connector controller there are no ramps. The unit is installed on a DIN rail.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
P/N: AX020140
Signal Inputs
0-5 VDC
4-20 mA
10 K potentiometer (accepts 5-50 K pots)
Output Current
0-300 mA
Operating Voltage
9-32 VDC
Enclosure
Housing, Phoenix Contact P/N: UMK-SE 11, 25-1-2970442
DIN rail foot, Phoenix Contact P/N: UMK-FE VE 500-29063654
PA66 Nylon
Connection(s)
2x 4-pin terminal blocks, Phoenix Contact P/N: PTA 1.5/4-3.5
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Accurate control of hydraulic and pneumatic proportional solenoid valves used in mobile equipment and industrial processes.
Datasheet
2D Drawing
STEP File
Compliance
Related Products
4 Magnetic Pickup Inputs CAN Converter, SAE J1939
0-10VDC Analog Input, 0.13A Output Economy Valve Controller, DIN Rail Mount
3 Universal Inputs, H-Bridge Output, 5A Motor Controller, SAE J1939

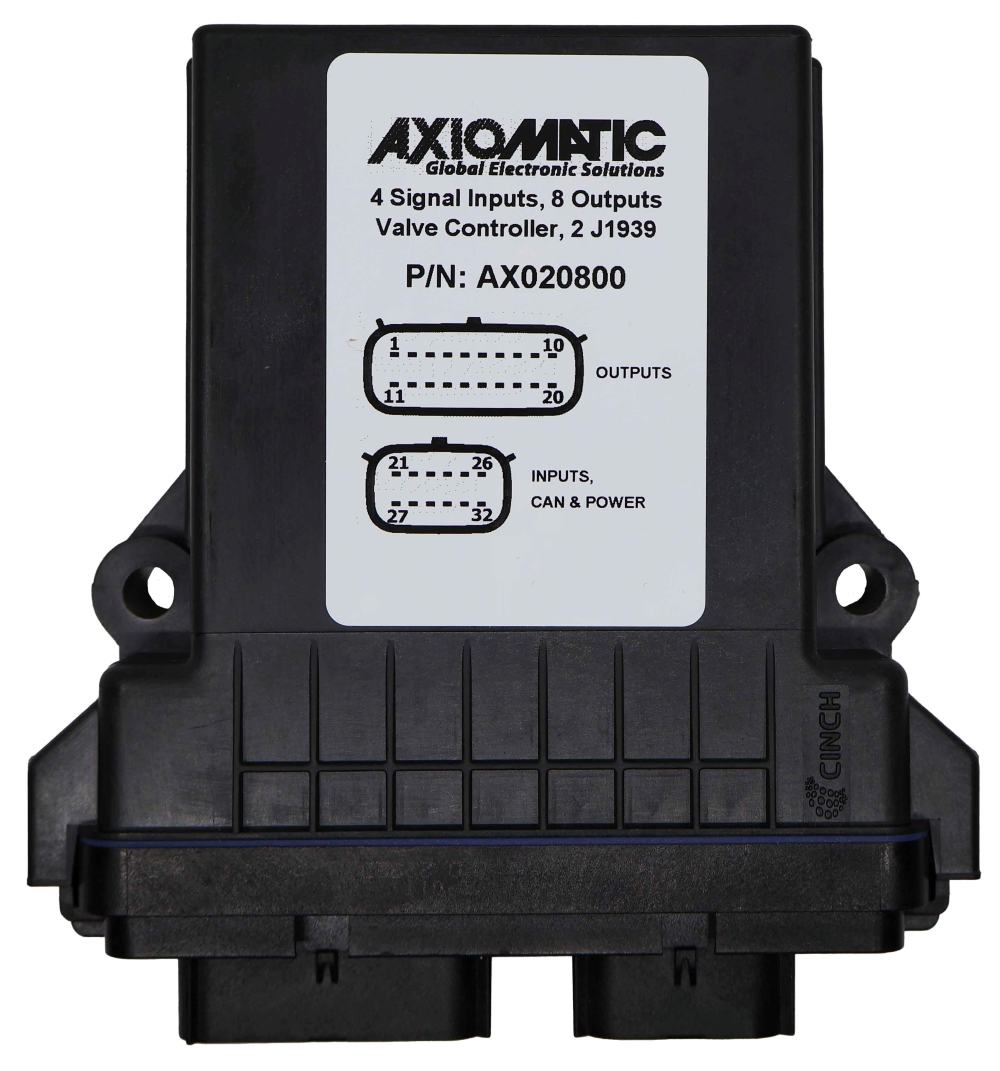

4 Inputs, 8 Proportional Outputs Valve Controller, CANopen®
