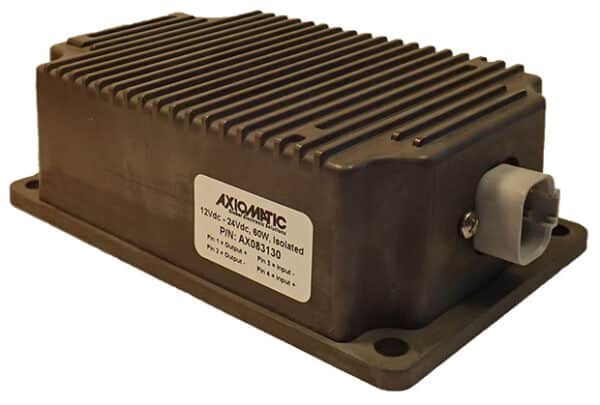

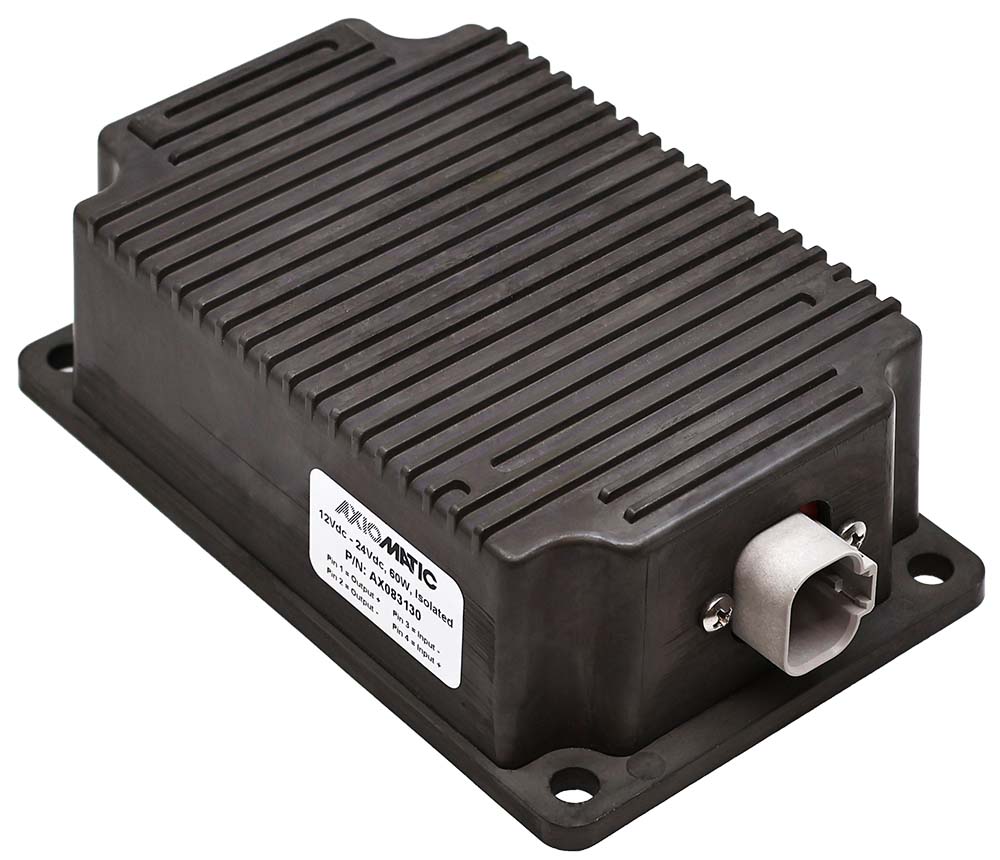

12VDC/24VDC, 60W Isolated Converter

Item # AX083130 — 12VDC/24VDC, 60W Isolated Converter

All Downloads

The DC-DC Converter provides clean 24VDC power suitable for instrumentation and control networks or vehicle control systems. For operation under the most harsh and demanding conditions, the unit is fully sealed, IP67 rated and enclosed to protect against moisture, shock and vibration. Power from a battery or other source in the range of 5-20VDC is converted to a 24VDC output regulated to 2%. Input and output isolation is provided. The unit is designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With a nominal nameplate rating of 60 Watts of output power, the DC-DC Converter has an efficiency rated at 89%.

To purchase the AX083130 12VDC/24VDC, 60W Isolated Converter as a kit with a mating wire harness, please visit: AX083130K - KIT (AX083130 Converter, AX070155 Wire Harness)

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX083130 (converter only)

Input(s)

12 VDC Nominal (5-20 VDC)

Output(s)

24 VDC +/- 2% (60 W)

Output Current

2.5 A Continuous
2 A for Inputs < 6 VDC

Isolation

Isolated from input, output and chassis ground
700 VDC between primary and secondary

Enclosure

Aluminum enclosure, encapsulated
3.76 x 6.12 x 1.93 inches
(W x L x H Including Connector)

Connection(s)

1 connector equivalent to the TE Deutsch P/N: DTP15-4P

Protection Rating

IP67

Operating Temperature

-40 to 85 °C (-40 to 185 °F)
-40 to 75 °C (-40 to 167 °F) at < 8 VDC input

Compliance

EMI/EMC Compliant
EN61000-4-2 ESD
ISO 10605 ESD
ISO 7637-2 Conducted Transients
SAE J1455 and SAE J1113 compliant (including load dump and cranking transients for 12 VDC systems)

Applications

Charging/Cranking Battery Based Power Supply Systems
Off-Highway Equipment Control Systems
Power Conditioning for Controls & Instrumentation
Power Radio Equipment

Accessories

AX070155, Wire Harness, 2 m (comprised of TE Deutsch mating plug DT06-4S, W4S, 4 contacts, 14 AWG unterminated wire)

PL-DT06-4S, Mating Plug Kit - 4 Socket

More +

Downloads

Datasheet

AX083130 Datasheet

2D Drawing

AX083130 Drawing

Compliance

EMC - DoC - AX083130

RoHS - DoC - All
