KIT (AX081540 Converter, AX070115 Wire Harness)

Item # AX081540K — KIT (AX081540 Converter, AX070115 Wire Harness)

All Downloads

The DC-DC Converter provides clean 24VDC power suitable for instrumentation and control networks or process equipment. For operation under the most harsh and demanding conditions, the unit is sealed and enclosed to protect against moisture, shock and vibration. Power from a 12VDC battery or other source in the range of 9-18VDC is converted to a 24VDC regulated output. Input and output isolation is provided. The unit is designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With a rating of 190 Watts of output power, the DC-DC Converter has a typical efficiency rated at 91%.

To purchase the AX081540 12VDC/24VDC, 190W Isolated Converter only, please visit: AX081540 - 12VDC/24VDC, 190W Isolated Converter

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

KIT P/N: AX081540K (includes wire harness)

Input(s)

12 VDC Nominal (9-18 VDC)

Output(s)

24 VDC +/- 2% (190 W)

Output Current

8 A continuous

Isolation

707 VDC Minimum

Enclosure

Cast Aluminum housing, integral gasket and connector
8.14 x 5.83 x 2.50 inches
L x W x H including integral connector

Connection(s)

1 4-pin connector equivalent to the TE Deutsch P/N: DTP13-4P

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Compliance

For compliance of the device, please see the compliance downloads on the device page.

Applications

Off-highway Equipment
Oilfield equipment
Power generator set control systems
Telecom

More +

Downloads

Datasheet

AX081540 Datasheet

2D Drawing

AX081540 Drawing

Compliance

RoHS - DoC - All

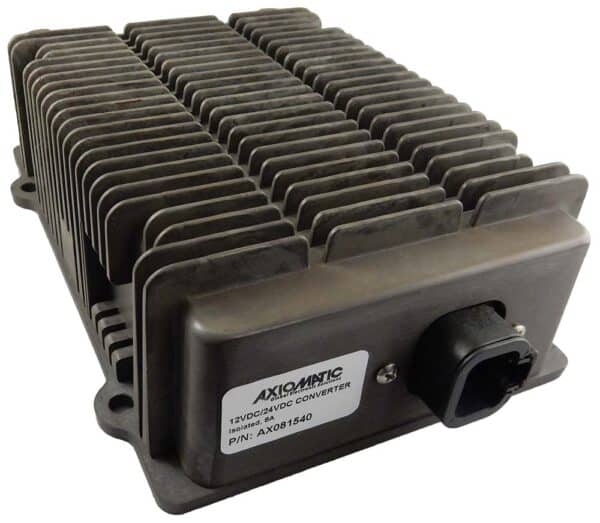

KIT (AX081540 Converter, AX070115 Wire Harness)-main
