1 Resistive Output CAN Controller, SAE J1939
Item # AX030570 — 1 Resistive Output CAN Controller, SAE J1939

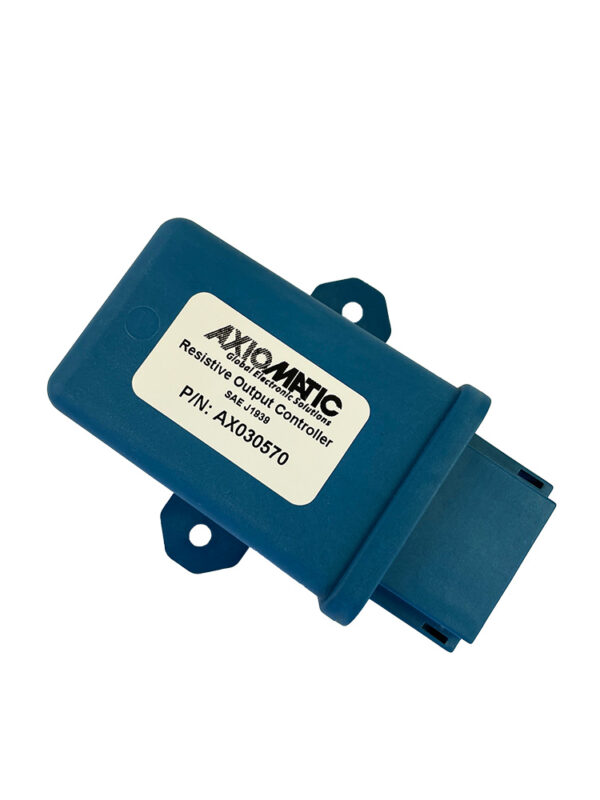

The 1 Resistive Output CAN Controller is designed to emulate an analog joystick or a potentiometer. It can be used as an interfacing module for CAN-based engine control or machine control units. It delivers 1 resistive output of up to 5000 Ohm (with 3 terminals) which can be configured. The hardware supports 1 CAN SAE J1939 port. Numerous configurable variables have been provided which are accessible using the Axiomatic Electronic Assistant.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
P/N: AX030570
Output(s)
1 resistive output with 3 terminals (A, B, and W) as follows.
A: Lead 1 of resistor
B: Lead 2 of resistor
W: Wiper
Communications
1 CAN port (SAE J1939)
CAN Baud Rate
250 kbit/s, 500 kbit/s, 667 kbit/s, and 1 Mbit/s with auto-baud-rate detection
Operating Voltage
12 or 24Vdc Nominal (9…36Vdc)
Control Logic
Standard embedded software is provided.
Enclosure
Plastic enclosure, ultrasonically welded
Nylon 6-6 with 30% glass fill
Integral connector
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
User Interface
Programmable using the Axiomatic Electronic Assistant KIT, P/N: AX070506K
Datasheet
User Manual
2D Drawing
Step Files (3D)
