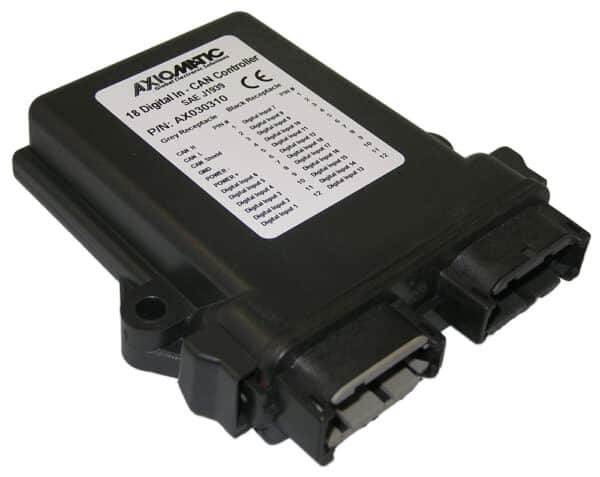

18 Digital Signal Inputs CAN Controller, SAE J1939

Item # AX030310 — 18 Digital Signal Inputs CAN Controller, SAE J1939

All Downloads

The 18 Digital Signal Input Module accepts up to 10 digital type inputs (Active High/Active Low, digital, disabled, PWM signal, Frequency, or counter). Up to 8 additional digital inputs are user selectable as Active High or Active Low. The electronic control can be connected to a variety of machine switches, sensors, PWM signals, etc. It interfaces with the machine’s CAN network (SAE J1939). Standard embedded software is provided. Rugged enclosure in addition to a wide-ranging power supply input section for 12V or 24Vdc power suits applications in the harsh environment of mobile equipment with on-board battery power. All setpoints are user configurable using the Axiomatic Electronic Assistant.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX030310

Input(s)

10 digital inputs user selectable as follows.
Active High/Active Low
Digital
Disabled
PWM (signal from sensors or diesel engine ECMs)
Frequency (Hz or RPM)
Counter

8 digital inputs user selectable as Active High/Active Low

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

Auto-baud rate detection

Operating Voltage

12V, 24VDC nominal (8…36VDC power supply range)

Control Logic

Standard embedded software is provided.

Enclosure

High temperature nylon housing
TE Deutsch P/N: EEC-325X4B

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Compliance

CE / UKCA marking
Exempt from Low Voltage Directive

Applications

Engine controls for commercial vehicles, off-highway equipment, etc.
Engine controls for power generation, co-generation, stationary power.

Accessories

PL-DTM06-12SA-12SB, Mating Plug KIT (DTM06-12SA, DTM06-12SB, 2 WM-12S, 24 Contacts, 18 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX030310 Datasheet

User Manual

AX030310 User Manual

2D Drawing

AX030310 Drawing

Step Files (3D)

24-Pin TE Deutsch Housing Assembly

Compliance

EMC - DoC - AX0303XX

UKCA - DoC - AX0303XX

RoHS - DoC - All
