4 Inputs, 8 Proportional Outputs Valve Controller, SAE J1939

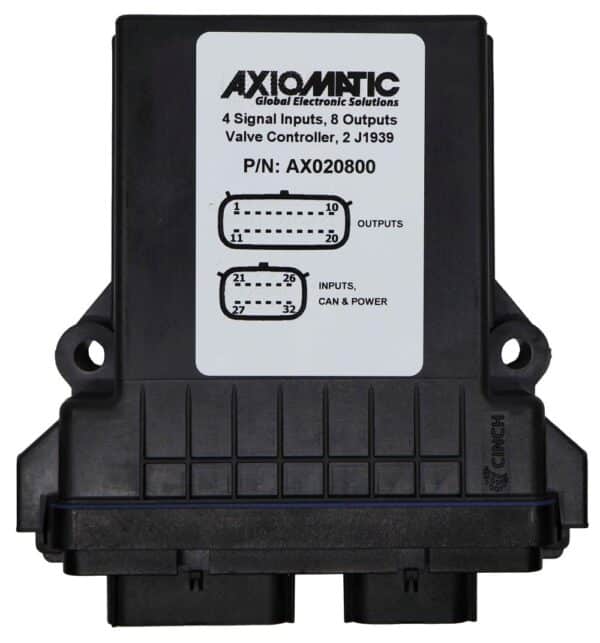

Item # AX020800 — 4 Inputs, 8 Proportional Outputs Valve Controller, SAE J1939
The 4 Inputs to 8 Proportional Outputs Controller accepts 4 universal command signal inputs as voltage ( 0-2.5 V, 0-10 V), current (0-20 mA, 4-20 mA), resistive (up to 250 kΩ), frequency (0-10 kHz), PWM (1 Hz-10 kHz), or digital types from sensors, joysticks, switches, or push-buttons. It provides 8 proportional outputs of up to 3 A capable of driving actuators, hydraulic valves, or motors. It interfaces with 2 SAE J1939 CAN networks using auto-baud-rate detection and utilizes a Wake-on-CAN function to save on power. Configuration is via the Axiomatic Electronic Assistant. Operating with machine battery power, it accepts 8 to 65 VDC (12, 24, or 48 VDC nominal). It is designed for harsh environments with an IP67 rating and operates from -40 to 85 °C (-40 to 185 °F). The controller can be applied on off-highway machines in distributed valve control CAN networked work functions.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
4 Inputs, 8 Proportional Outputs Valve Controller, SAE J1939
Order Code
P/N: AX020800
Input(s)
4 universal signal inputs are user selectable as follows.
Voltage (0-2.5 V, 0-10 V)
Current (0-20 mA, 4-20 mA)
Resistive (up to 250 kΩ)
Frequency (0-10 kHz)
PWM (1 Hz to 10 kHz)
Digital
Output(s)
8 proportional outputs are user selectable as follows.
Voltage 0-Vps (up to 48 V)
Current (0-3 A)
Hotshot digital
PWM (1 Hz to 25 kHz)
Digital on/off
Disabled
Communications
2 CAN ports (SAE J1939)
CAN Baud Rate
250 kbit/s, 500 kbit/s, 667 kbit/s, and 1 Mbit/s with auto-baud-rate detection
Operating Voltage
12/24/48 VDC nominal (8-65 VDC)
Control Logic
User programmable functionality using the Electronic Assistant (EA),
P/N: AX070502 or P/N: AX070506K
Enclosure
CINCH enclosure, P/N: 5810130065
Glass filled Polyphthalamide (PPA) material
Connection(s)
1x 32-pin connector, CINCH ME-MX P/N: 5810132011
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Designed to drive actuators, hydraulic valves, or motors with inputs from sensors, joysticks, switches, or push-buttons in the following applications:
Municipal vehicles
Off-highway and construction equipment
Trucks
Accessories
AX070172, Mating Plug Kit (coming soon)
Datasheet
User Manual
2D Drawing
STEP File
Compliance
