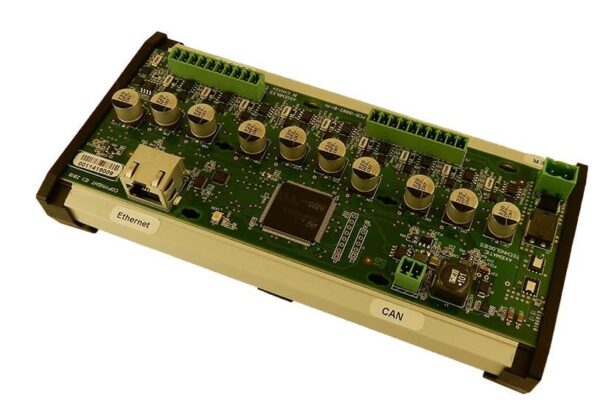

KIT (AX029001 Controller, Mating Plug Kit AX070151)
Item # AX029001K — KIT (AX029001 Controller, Mating Plug Kit AX070151)
The valve controller features ten (10) independent user configurable outputs to drive valves (0-2.5 A). Output type is high side sourcing or low side sinking.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
P/N: AX029001K
Output(s)
10 independent universal outputs up to 2.5 A, selectable as:
Proportional current
Proportional voltage
Hotshot
ON/OFF digital
PWM type
Outputs provide high side sourcing or low side sinking
Communications
1 CAN port (CANopen)
1 Ethernet port (10/100 Mbit)
Operating Voltage
12/24 VDC nominal (8-36 VDC)
Control Logic
User programmable functionality
Enclosure
Polyamide, China RoHS and cULus recognized
UL94V0
DIN rail TH 35-7.5
Protection Rating
IP20
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Compliance
For compliance of the device, please see the compliance downloads on the device page.
Applications
The controller is designed to be applied in industrial process equipment.
