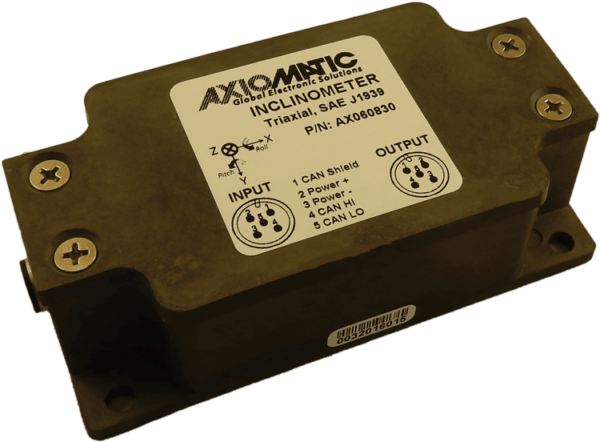

High Performance Triaxial Inclinometer, SAE J1939, M12 Connectors
Item # AX060830 — High Performance Triaxial Inclinometer, SAE J1939, M12 Connectors
The triaxial inclinometer is designed to accurately measure inclination angles in three directions and in the range of ±180º. The resolved angles can be then sent to the SAE J1939 fieldbus or output as voltages using three available inclinometer signal voltage outputs. Due to a powerful microcontroller and MEMS sensor, the inclinometer can perform pre-processing of the angular information according to the users’ needs. The controller provides reliable, real-time, accurate and stable slope angle data.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
P/N: AX060830 (SAE J1939)
Measurement Range
Triaxial: -180º to 180º (0 to 360º)
Communications
1 CAN port (SAE J1939)
CAN Baud Rate
Auto-baud rate detection
Operating Voltage
12/24 VDC nominal (9-36 VDC)
Control Logic
User programmable functionality using the Electronic Assistant (EA),
P/N: AX070502 or P/N: AX070506K
Enclosure
Anodized, cast aluminum housing, with a gasket
Connection(s)
2 5-pin M12 round connectors (A-coded)
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Level, tilt, pitch and acceleration monitoring in agricultural, off-highway and mining equipment
Navigation system component
Platform levelling and stabilization in industrial machines
Datasheet
User Manual
2D Drawing
STEP File
