High Performance Triaxial Inclinometer, CANopen®, DT13-4P Connector, Integral CAN Termination

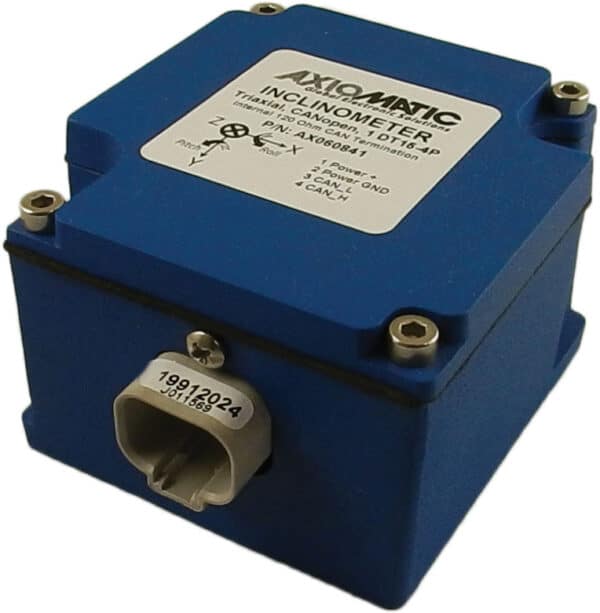

Item # AX060841 — High Performance Triaxial Inclinometer, CANopen®, DT13-4P Connector, Integral CAN Termination
The unit measures pitch and roll inclination angles in a full ±180 degree orientation range. The unit can also output gravity angle and unit accelerations in three orthogonal directions. The inclinometer transmits angular data over CAN bus using a standard CANopen protocol. An EDS file is provided for user installation.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
The unit measures pitch and roll inclination angles in a full ±180 degree orientation range. The unit can also output gravity angle and unit accelerations in three orthogonal directions. The inclinometer transmits angular data over CAN bus using a standard CANopen protocol. An EDS file is provided for user installation.
Order Code
P/N: AX060841 (CANopen, internal CAN termination)
Measurement Range
Triaxial: -180º to 180º (0 to 360º)
Communications
1 CAN port (CANopen®)
CAN Baud Rate
10 kbit/s, 20 kbit/s, 50 kbit/s, 100 kbit/s, 125 kbit/s, 250 kbit/s, 500 kbit/s, 667 kbit/s, and 1 Mbit/s baud-rates are supported
Operating Voltage
12/24 VDC nominal (9-36 VDC)
Enclosure
Painted, aluminum enclosure with gasket
Connection(s)
1 4-pin connector equivalent to the TE Deutsch P/N: DTP13-4P
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Level, tilt, pitch and acceleration monitoring in agricultural, off-highway and mining equipment
Navigation system component
Platform levelling and stabilization in industrial machines
Accessories
PL-DT06-4S, Mating Plug Kit - 4 Socket
Datasheet
User Manual
2D Drawing
STEP File
Compliance
