0-200 mA to 4-20 mA Isolated Current Converter, DIN Rail Mount

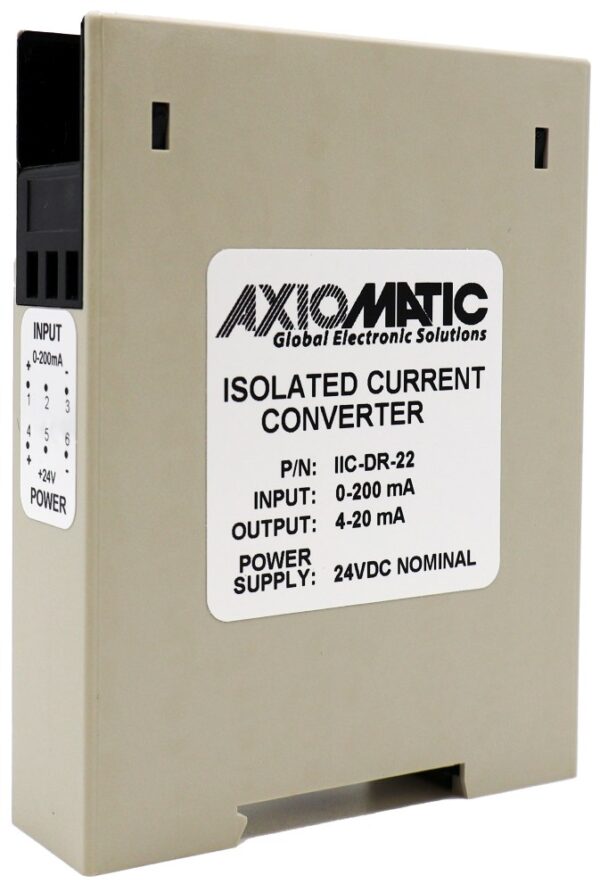

Item # IIC-DR-22 — 0-200 mA to 4-20 mA Isolated Current Converter, DIN Rail Mount
The isolated current converter accepts a 9 to 45 VDC power supply range (24 VDC nominal). A diagnostic LED indicates power and operational status. The output LED is on when the load, input signal, and power supply are connected and the output LED flashes when the load is disconnected. The load can be floating or grounded. IIC-DR-22 is available in a DIN rail mount housing. As part of a load management strategy for a marine propulsion system, the unit converts a 0-200 mA load signal from a diesel engine control computer to a 4-20 mA signal for a variable pitch propeller control system. Span and zero are user adjustable.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
0-200 mA to 4-20 mA Isolated Current Converter, DIN Rail Mount
Order Code
P/N: IIC-DR-22
Current Input
0-200 mA
LED Outputs
1 LED
Operating Voltage
24 VDC nominal (9-45 VDC)
Isolation
3-way isolation
Enclosure
Polycarbonate, DR12
DIN Rail Mount
Protection Rating
Conformal coated PCB
IP40 rated housing, IP20 rated terminals
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Load management strategy for a marine propulsion system; the unit converts a load signal from a diesel engine control computer to a signal for a variable pitch propeller control system.
Datasheet
Compliance
