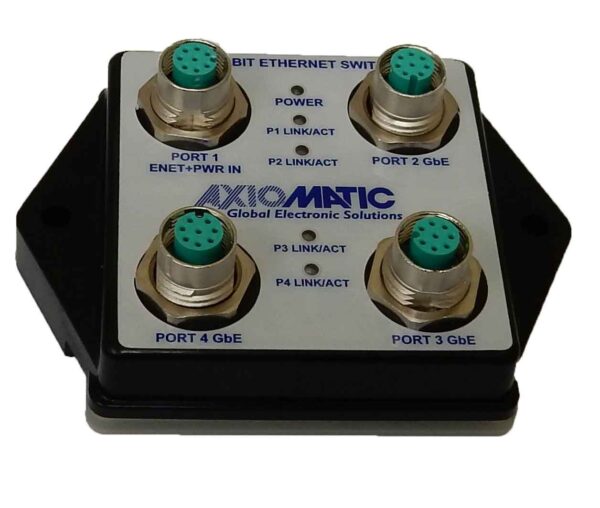

The AX140720 4 Port Gigabit Ethernet Switch operates as an unmanaged switch and can connect up to four different Ethernet capable devices. Three ports can communicate up to 1 Gbps (1000 Mbps) and one port can communicate up to 100 Mbps. Each port, including the power port, has an LED indicator that shows the status of the port. The unit is compact and rated IP67 making the 4 Port Gigabit Ethernet Switch suitable for harsh environments with power transients, high humidity, vibrations, and shock. The AX140720 Ethernet switch is best suited for applications such as mining equipment and/or off-highway equipment.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
The AX140720 4 Port Gigabit Ethernet Switch operates as an unmanaged switch and can connect up to four different Ethernet capable devices. Three ports can communicate up to 1 Gbps (1000 Mbps) and one port can communicate up to 100 Mbps. Each port, including the power port, has an LED indicator that shows the status of the port. The unit is compact and rated IP67 making the 4 Port Gigabit Ethernet Switch suitable for harsh environments with power transients, high humidity, vibrations, and shock. The AX140720 Ethernet switch is best suited for applications such as mining equipment and/or off-highway equipment.
Technical Specifications
4 Port Gigabit Ethernet Switch
Order Code
P/N: AX140720
Ethernet Port(s)
1 Ethernet port (10/100 Mbps), 10/100 BASE-TX
3 Ethernet ports (10, 100, or 1000 Mbps), 10/100/1000 BASE-T
All Ethernet ports are EDS protected.
Operating Voltage
12/24 VDC Nominal (8-36 VDC)
Enclosure
Injection molded plastic
PA66 with 30% glass fiber reinforced
Laser welded
Connection(s)
4x 8-pin M12 female connectors, Phoenix P/N: 1456543
Protection Rating
IP67
Operating Temperature
-40 to 70 °C
-40 to 158 °F
Applications
Mining equipment
Off-highway equipment
Datasheet
2D Drawing
