The AX140705 is designed for industrial and off-highway applications requiring high performance Ethernet connectivity. Each switch port can communicate at 1 Gbit/s, 100 Mbit/s, or 10 Mbit/s speeds according to IEEE 802.3 standards. The switch internal logic is not configurable, resulting in unmanaged switch functionality. An RS-232 port can be used to configure switch ports, monitor the device performance, download and upload configuration parameters, and update application firmware. A separate Power Enable digital signal is used to power-up the device in applications where the switch is constantly connected to the battery. The internal state of the switch is displayed by LEDs on the front panel of the housing.

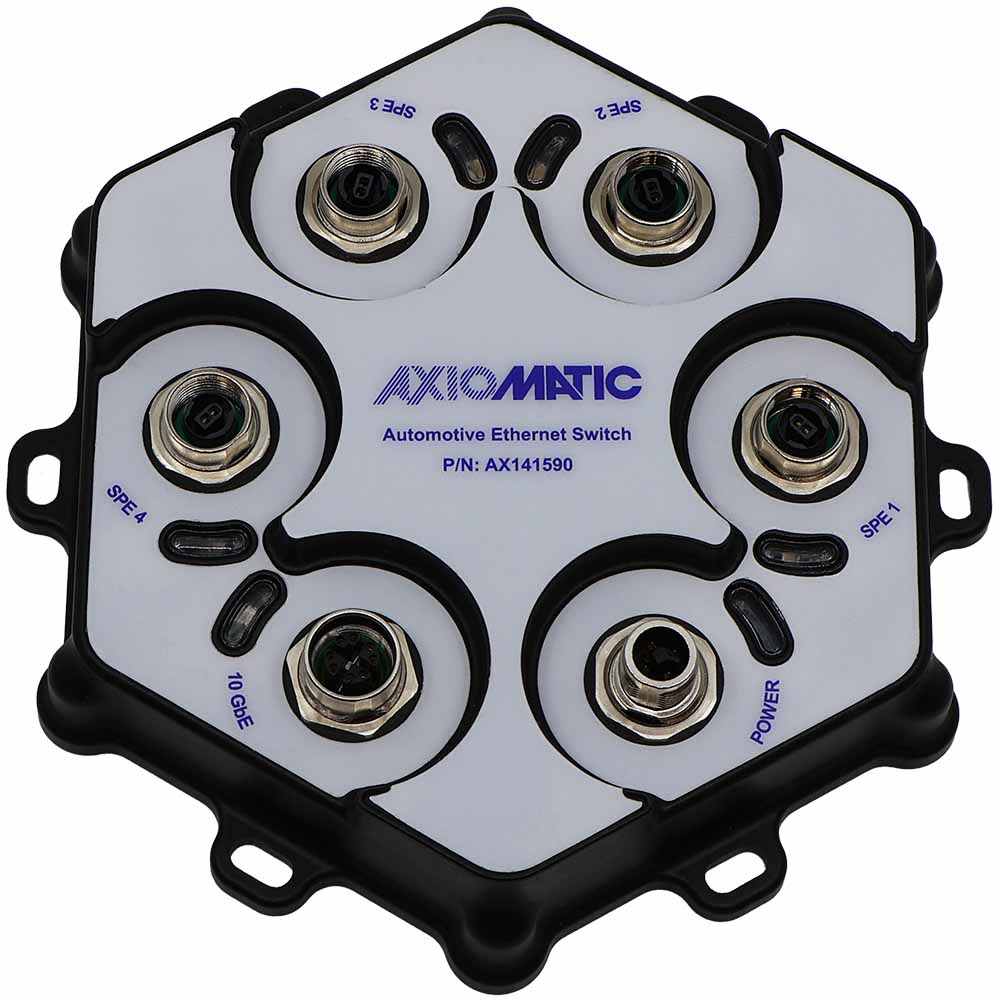

Note: This product is under development. Its technical specifications may be subject to change. The photo is for illustration purposes only. The actual unit features different connectors. See electrical pin out for details.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
6 Port Gigabit Ethernet Switch
Order Code
P/N: AX140705
Ethernet Port(s)
6 ports (10Mbps, 100 Mbps or 1 Gbps)
10BASE-T, 100BASE-T, or 1000BASE-T (IEEE 802.3 compliant)
Auto-Negotiation
Automatic Polarity Correction
Operating Voltage
12/24 VDC nominal (9-36 VDC)
Enclosure
Anodized, cast aluminum housing
Lexan overlay
Connection(s)
1 5-pin M12 male connector (A-coded), Binder P/N: 09-3441-126-05
6 8-pin M12 female connector (X-coded), Binder P/N: 99-3782-200-08
Protection Rating
IP67
Operating Temperature
-40 to 75 °C
-40 to 167 °F
User Interface
The user programmable functionality is accessible via RS-232 interface.
Applications
Industrial automation
Off-highway equipment
