4x Gigabit, 1x 10 Gigabit Ethernet Switch

Item # AX140740 — 4x Gigabit, 1x 10 Gigabit Ethernet Switch

All Downloads

The 4x Gigabit, 1x 10 Gigabit Ethernet Switch is designed for industrial and automotive applications requiring multiple high performance 1 Gbit/s Ethernet connections and can channel this data traffic to one 10 Gbit/s Ethernet port to prevent bandwidth loss. The switch has four 1 Gbit/s Ethernet ports and one 10 Gbit/s Ethernet port. AX140740 is a managed Ethernet switch with VLAN tagging. All Ethernet ports use industrial M12 X-coded connectors. The 10 Gbit/s Ethernet port is intended for connection to the uplink Ethernet infrastructure or a high-bandwidth server but can be used as a regular downlink port. Each port can be individually configured for the desired connection speed, duplex, and flow control. AX140740 features a secure interface with password protection for device configuration. The internal logic is not configurable, resulting in unmanaged switch functionality. An embedded web server allows users to configure ports, monitor device performance, download and upload configuration parameters, and update application firmware. An auxiliary RS-232 port can be used as a local alternative to the remote web server interface, similar to a console port on a generic Ethernet switch. The internal states of the switch are displayed by LEDs on the front panel of the housing.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Since 1991, Axiomatic Technologies Corporation (axiomatic.com) has been designing and manufacturing rugged electronic controls and power conversion for heavy-duty and specialty vehicle OEMs — SAE J1939, CANopen®, CAN-FD, LIN, Modbus, RS-232, RS-422, RS-485, and BLE protocol converters; CAN I/O controllers and valve drivers; Ethernet I/O and PoE controls; Ethernet and Automotive Ethernet switches and converters; GMSL converters; H-bridge controllers; BLDC controllers, FOC controllers; CAN routers; CAN repeaters; RTD, PTC, and TC scanners; 12V-140V DC-DC Converters; and inclinometers and laser receivers for mining, construction, agriculture, forestry, municipal, utility, lift, and material handling machines, autonomous vehicles, on-highway trucks and buses, power generators, and marine engines.

Add to Quote

QTY

Specifications

Technical Specifications

4x Gigabit, 1x 10 Gigabit Ethernet Switch

Order Code

P/N: AX140740

No. of Communication Port(s)

Ethernet Port(s)

4 Ethernet ports (up to 1 Gbit/s)
10BASE-T, 100BASE-TX, 1000BASE-T
Auto-MDIX, full-duplex, and half-duplex are available

1 Ethernet port (up to 10 Gbit/s)
10BASE-Te, 100BASE-TX, 1000BASE-T, 2.5GBASE-T, 5GBASE-T, 10GBASE-T
Auto-MDIX and full-duplex are available

Operating Voltage

12/24 V_DC nominal (9-36 V_DC)

Control Logic

Standard embedded logic is provided.
Device functionality is user programmable.

Enclosure

Anodized, cast aluminum housing
Lexan overlay

Connection(s)

1x 4-pin M12 male connector (T-coded), Phoenix Contact P/N: 1412017
5x 8-pin M12 shielded female connectors (X-coded), Phoenix Contact P/N: 1411964

Protection Rating

IP67

Operating Temperature

-40 to 65 ºC
-40 to 149 ºF

User Interface

The configuration, diagnostics, and flashing of application firmware is accessible via web server.
An auxiliary RS-232 port can be used as a local alternative to the remote web server interface.

Applications

Designed to connect multiple Ethernet devices in off-highway and mining equipment

More +

Downloads

Datasheet

AX140740 Datasheet

User Manual

AX140740 User Manual

2D Drawing

AX140740 Drawing

3D Model

AX140740 Housing Assembly STEP File

Compliance

RoHS - DoC - All

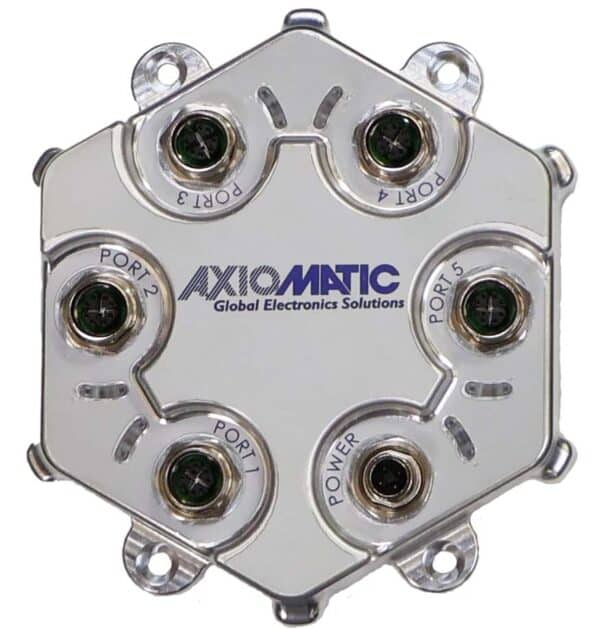

4x Gigabit, 1x 10 Gigabit Ethernet Switch-main
