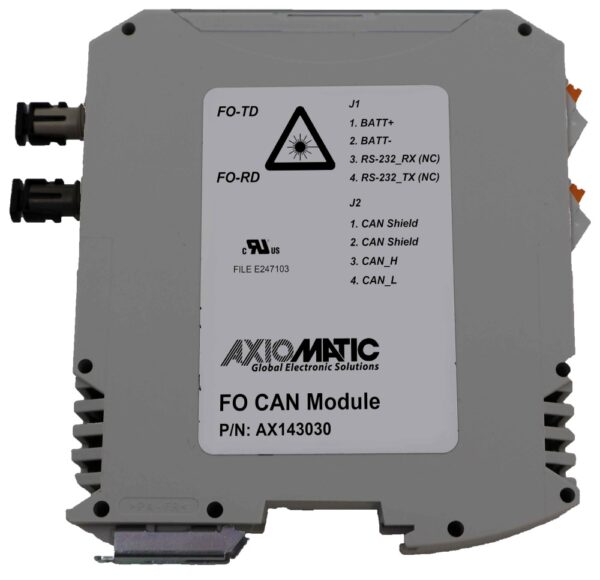

Fiber Optic/CAN, RTD Isolator Module, SAE J1939

Item # AX143030 — Fiber Optic/CAN, RTD Isolator Module, SAE J1939

All Downloads

AX143030 is an FO to CAN, RTD Isolator designed to work as a system with the AX180610 RTD to FO Module. The modules work together as a pair over a fiber optic (FO) connection. The split functionality of AX180610 and AX143030 helps remove the RTD controller module from the field to an area where it can be better protected as it is prone to damage and tampering in the field. Communication over FO provides low latency and inherent isolation between the modules. AX143030 features isolation between CAN and FO. All RTD channels are automatically sent over the FO when the devices are powered on, without additional programming or configuration. The RTD-FO module relays temperature data to AX143030 over an FO connection. The FO-CAN module remotely processes this data and provides temperature readings and related warnings through an SAE J1939 CAN bus to the engine control system (ECM) at 250 kbit/s. The user can program a set of parameters for each input to support diagnostic messaging for RTD integrity and fault notification as well as use Averaging Blocks to provide grouping and filtering options for the inputs. AX143030 is configurable via CAN bus using the Axiomatic Electronic Assistant KIT (sold separately). Setpoint configuration can be saved in a file which can then be utilized to apply the same configuration to other AX186010 and AX143030 pairs.

To learn more about AX180610 please visit: AX180610 — RTD/Fiber Optic Module.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

Fiber Optic/CAN, RTD Isolator Module, SAE J1939

Order Code

P/N: AX143030

CAN Baud Rate

250 kbit/s

Fiber Optic

820 nm wavelength, 62.5/125 μm fiber size, ST connector
FO cables not supplied

Operating Voltage

12/24 V_DC nominal (8-36 V_DC)

Isolation

300 V_RMS
2-way isolation between fiber optic and CAN

Control Logic

Standard embedded logic is provided.
Device functionality is user programmable.

Enclosure

DIN rail housing, Phoenix Contact ME MAX 22,5 3-U1 KMGY – 2201538 (vented)
DIN rail TH 35-7.5
Polyamide, China RoHS and cULus recognized

Connection(s)

1x FO connector, Broadcom P/N: HFBR-1412TZ
1x FO connector, Broadcom P/N: HFBR-2412TZ
2x 4-pin PSPT 2,5/ 4-ST KMGY spring clamp connectors, Phoenix Contact P/N: 2202344

Protection Rating

IP20 housing
IP54 FO connectors

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

Programmable using the Axiomatic Electronic Assistant, P/N: AX070506K

Applications

Designed for engine control systems and gensets requiring isolation of RTDs and remote installation of RTD controllers.

Configuration Accessories

AX070506K, Axiomatic Electronic Assistant KIT (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX143030 Datasheet

User Manual

AX143030-AX180610 User Manual

2D Drawing

AX143030 Drawing

3D Model

AX143030 Housing Assembly STEP File

Compliance

RoHS - Declaration of Conformity - All

LVD - Declaration of Conformity - All
