CAN-Bluetooth® Beacon Gateway, SAE J1939
Item # AX141156 — CAN-Bluetooth® Beacon Gateway, SAE J1939

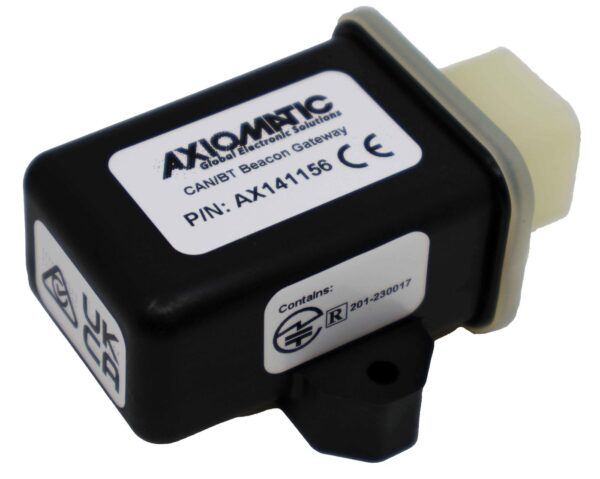

The AX141156 CAN-Bluetooth® Beacon Gateway receives messages from tire pressure sensors or other Bluetooth® beacons and transmits them over a machine’s SAE J1939 CAN network. The Bluetooth® beacon supports up to 8 beacons simultaneously and uses Bluetooth® Low Energy (BLE) V5.2 standards. The device can be configured wirelessly using the CAN2BLE configuration app that is available from Google Play Store and Apple App Store for a fee. The app enables users to manage all device functionalities including setting PIN codes, configuring beacons, and defining forwarding rules. Users can configure specific bytes from the beacon frames or transmit the entire frame. The AX141156 CAN-Bluetooth® device features auto-baud-rate detection and supports baud rates of 20, 50, 100, 125, 250, 500, and 1000 kbps. The unit carries CE, UKCA, and Giteki markings and features rugged packaging for an IP67 protection rating for high vibration and off-highway machine environments.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
The AX141156 CAN-Bluetooth® Beacon Gateway receives messages from tire pressure sensors or other Bluetooth® beacons and transmits them over a machine’s SAE J1939 CAN network. The Bluetooth® beacon supports up to 8 beacons simultaneously and uses Bluetooth® Low Energy (BLE) V5.2 standards. The device can be configured wirelessly using the CAN2BLE configuration app that is available from Google Play Store and Apple App Store for a fee. The app enables users to manage all device functionalities including setting PIN codes, configuring beacons, and defining forwarding rules. Users can configure specific bytes from the beacon frames or transmit the entire frame. The AX141156 CAN-Bluetooth® device features auto-baud-rate detection and supports baud rates of 20, 50, 100, 125, 250, 500, and 1000 kbps. The unit carries CE, UKCA, and Giteki markings and features rugged packaging for an IP67 protection rating for high vibration and off-highway machine environments.
Technical Specifications
CAN-Bluetooth® Beacon Gateway, SAE J1939
Order Code
P/N: AX141156
CAN Port(s)
1 CAN port (SAE J1939)
CAN Baud Rate
20 kbit/s, 50 kbit/s, 100 kbit/s, 125 kbit/s, 250 kbit/s (default), 500 kbit/s, or 1 Mbit/s with auto-baud-rate detection
Bluetooth
Bluetooth® LE V5.2 compliant
Operating Voltage
12/24/48 VDC nominal (8-80 VDC)
Control Logic
User programmable functionality using the CAN2BLE configuration application.
Enclosure
Molded enclosure, integral connector
Nylon 6/6, 30% glass, laser welded
Flammability rating: UL 94 HB
Connection(s)
1x 6-pin connector, equivalent to TE Deutsch P/N: DT04-6P
Protection Rating
IP67
Operating Temperature
-30 to 85 °C
-22 to 185 °F
Applications
Off-highway equipment
Accessories
AX070119, Mating Plug Kit (DT06-6S, W6S, 6 Contacts)
CAN2BLE Configuration Application for Android devices
CAN2BLE Configuration Application for iOS devices
Datasheet
