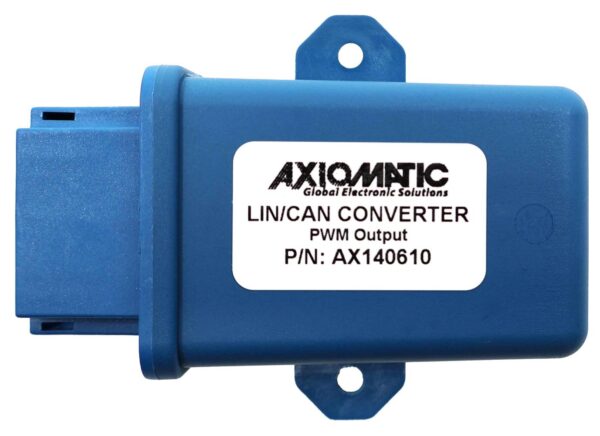

LIN/CAN Protocol Converter, PWM Output, SAE J1939

Item # AX140610 — LIN/CAN Protocol Converter, PWM Output, SAE J1939

All Downloads

The AX140610 protocol converter features data exchange between a LIN network and a CAN network, supports 75 LIN signals, 25 LIN unconditional frames, 25 CAN receive messages, and 25 CAN transmit messages, and generates a frequency, PWM, or digital on/off output to connect to an annunciator, LED, or other device. The converter has 1 SAE J1939 port, 1 single-pin LIN 2.2A port, 1 PWM output, an STM32 F413 microcontroller, and operates with an input power of 12 or 24 VDC nominal (9 to 32 VDC). The LIN/CAN protocol converter features Auto-Baud-Rate detection and is user configurable via the Axiomatic Electronic Assistant. The unit is fully sealed, compact, and rated IP67. The AX140610 LIN/CAN protocol converter is suitable for applications such as off-highway/mobile equipment, trucks/commercial vehicles, and agricultural equipment. Please visit the LIN/CAN Converters category page for a comparison of salient features of our various LIN/CAN Converters.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

CAN/LIN Protocol Converter with PWM Output, SAE J1939

Order Code

P/N: AX140610

Output(s)

1 output, user configurable as follows:
Frequency/PWM (1 Hz to 20 kHz)
Digital on/off

Communications

1 CAN port (SAE J1939)
1 LIN port (LIN 2.2A)

CAN Baud Rate

250 kbit/s, 500 kbit/s, 667 kbit/s, and 1 Mbit/s with auto-baud-rate detection

Operating Voltage

12/24 V_DC nominal (9-32 V_DC)

Control Logic

Standard embedded logic is provided.
Device functionality is user programmable.

Enclosure

Plastic housing, integral TE Deutsch equivalent connector
Nylon 6/6, 30% glass fill, ultrasonically welded

Connection(s)

1x 8-pin connector equivalent to TE Deutsch P/N: DT04-08PA

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

Programmable using the Axiomatic Electronic Assistant KIT, P/N: AX070506K

Applications

Agricultural equipment
Mobile (off-highway) equipment
Trucks (commercial vehicles)

Accessories

AX070112, Mating Plug Kit (DT06-08SA, W8S, 8 Contacts, 6 Plugs)

AX070506K, Axiomatic Electronic Assistant KIT (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX140610 Datasheet

User Manual

AX140610 User Manual

2D Drawing

AX140610 Drawing

STEP File

8-pin Ultrasonically Welded Housing

Compliance

RoHS - DoC - All

UKCA - DoC - AX1406XX

LVD - DoC - All
