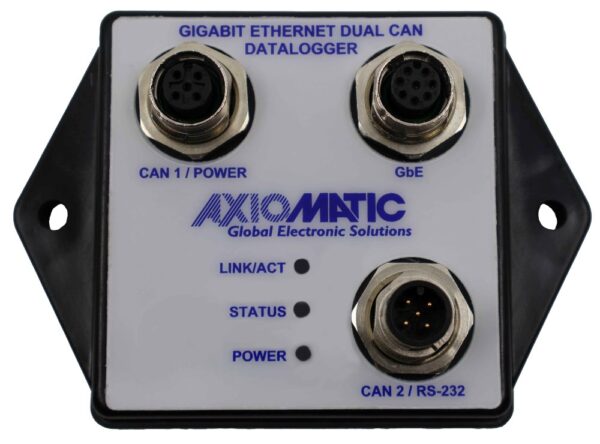

Data Logger, CAN/RS-232/Gigabit Ethernet

Item # AX141000 — Data Logger, CAN/RS-232/Gigabit Ethernet

All Downloads

The data logger provides fast and bi-directional data exchange between CAN, RS-232, and Ethernet. The AX141000 provides data logging to an internal 128 GB embedded Multi-Media Card (eMMC) for storing both the operating system and the logged data. The eMMC contains both Linux image and data logging partitions. A supercapacitor (supercap) provides backup power to the central processing unit (CPU) for finalizing the data log save before it shuts down in case of a power failure. The AX141000 data logger provides an active low SYNC pin that is used for data logging start/stop synchronization. The data logging device features 2 CAN ports, 1 RS-232 port, and 1 Ethernet interface port (TCP/IP). The default settings of AX141000 establish Linux root console as the user interface for the RS-232 port and supports CAN data logging. The default installation contains software for both data logging and backup power management.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

Data Logger, CAN/RS-232/Gigabit Ethernet

Order Code

P/N: AX141000

Input(s)

Supercapacitor backup for ensuring data integrity

Communications

1 Ethernet interface port (TCP/IP)
1 RS-232 port (default functionality programmed to Linux root console)
2 CAN 2.0B ports (CANopen®/SAE J1939 compliant)

CAN Port(s)

2 CAN 2.0B ports
CANopen®/SAE J1939 compliant
CAN FD is supported

CAN Baud Rate

250 kbit/s (default)

Ethernet Port(s)

1 Ethernet interface port (TCP/IP)
10BASE-T, 100BASE-T, 1000BASE-T
Ethernet IEEE 802.3bw or IEEE 802.3 (2015)

Operating Voltage

12/24 VDC nominal (8-36 VDC)

Enclosure

Injection molded housing and cover
PA66, 30% glass fiber reinforced, laser welded

Connection(s)

1x 5-pin M12 circular male connector (A-coded), Phoenix Contact P/N: 1441765
1x 5-pin M12 circular female connector (A-coded), Phoenix Contact P/N: 1441778
1x 8-pin M12 circular female connector (A-coded), Phoenix Contact P/N: 1441817

Protection Rating

IP67 (IEC 60529 with mated connectors)

Operating Temperature

-40 to 65 ºC
-40 to 149 ºF

User Interface

The Ethernet (TCP/IP) user interface is SSH and SFTP servers.
The RS-232 (Linux Console) user interface is any terminal emulator that supports serial communication (default functionality: Linux root console)

Applications

Data logging and communications interface for rugged environments such as generator sets, machines, and vehicles

Accessories

AX070139, M12 Mating Plug with 2m Cable, Unterminated

AX070532, CAN Cable, 2.0 m (6.5 ft), 5-Pin M12 A-Coded Connector, Unterminated Leads

AX070535, 2m (6.5 ft.), 8-pin M12 A-coded, Ethernet Jack, Ethernet Cable
