Dual Servo Valve Controller, +/-200 mA, 2 Outputs, SAE J1939
Item # AX024040 — Dual Servo Valve Controller, +/-200 mA, 2 Outputs, SAE J1939
The Dual Bidirectional 200 mA Servo Valve Controller provides two outputs selectable as servo valve control or proportional current type. The outputs can be used as 1 full H-bridge output. Selectable current ranges are +/-50 mA, +/-100 mA, and +/-200 mA. It has an auto-baud-rate detection feature for CAN SAE J1939 networks. The Axiomatic Electronic Assistant is used to configure it. Setpoint configuration can be saved in a file which can then be utilized to program the same configuration to another AX024040 device.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
Dual Servo Valve Controller, +/-200 mA, 2 Outputs, SAE J1939
Order Code
P/N: AX024040
Output(s)
1 full H-bridge output or 2 bidirectional outputs
The bidirectional outputs are user selectable as follows:
Servo valve control
Proportional current
Communications
1 CAN port (SAE J1939)
CAN Baud Rate
Auto-baud rate detection
Operating Voltage
12/24 VDC nominal (8-36 VDC)
Control Logic
Standard embedded software is provided.
The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K
Enclosure
Plastic housing, integral TE Deutsch equivalent connector
Nylon 6/6, 30% glass fill, laser welded
Flammability rating: UL 94 HB
Connection(s)
1x 8-pin connector equivalent to TE Deutsch P/N: DT04-08PA
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Agricultural equipment
Mobile equipment
Off-highway machine automation
Oil and gas equipment automation
Accessories
Datasheet
User Manual
2D Drawing
STEP File
Compliance
4 Inputs, 8 Proportional Outputs Valve Controller, CANopen®
Dual Servo Valve Controller, +/-200 mA, 2 Outputs, SAE J1939
4 Inputs, 8 Proportional Outputs Valve Controller, SAE J1939

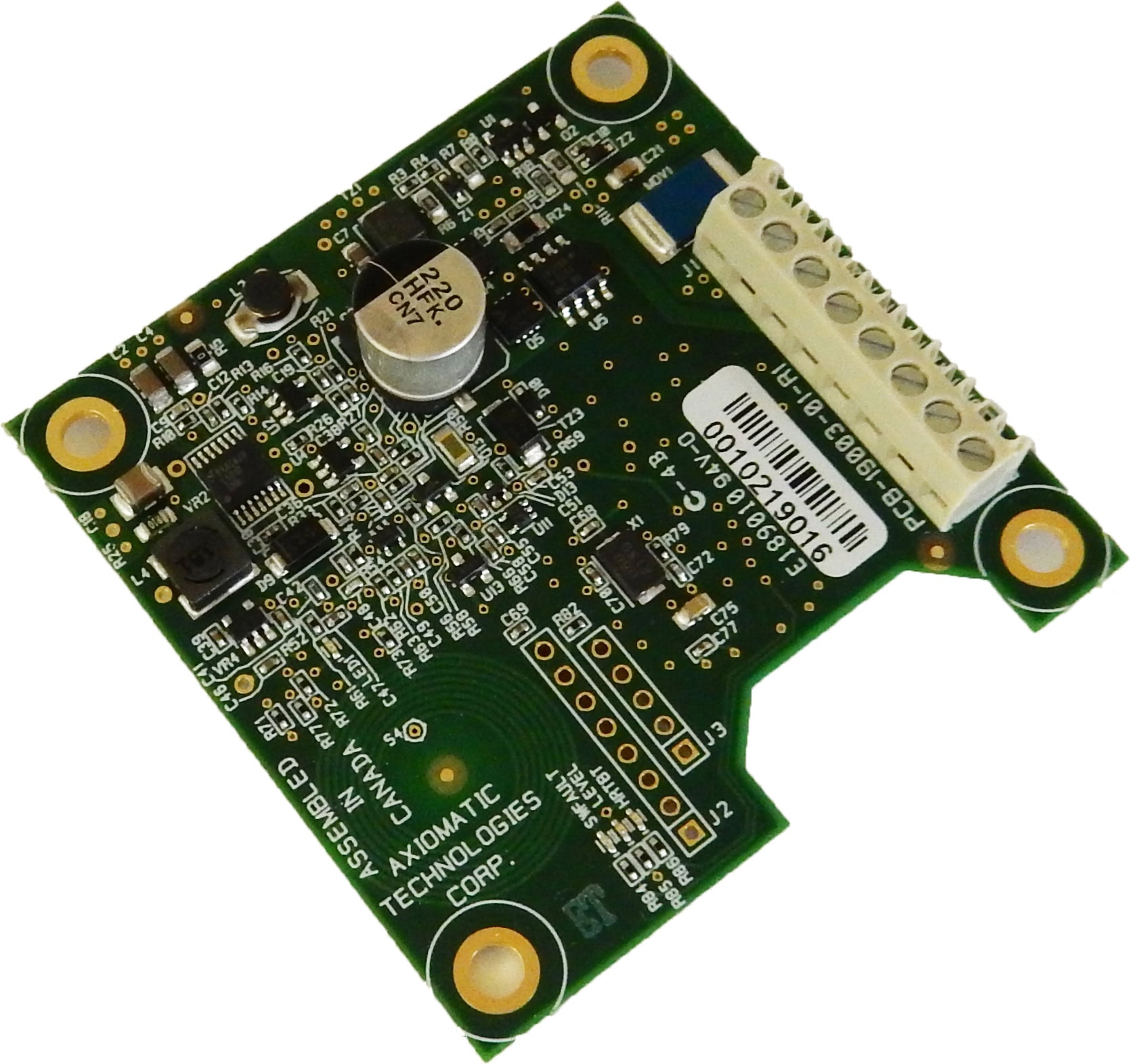

Universal Input, Single Output (3A) Valve Controller, Near Field Communications, PCB Assembly with Screw Terminals
Universal Input, Single Output (3A) Valve Controller, Near Field Communications, Metal Box, PG9 Strain Relief
Universal Input, Single Output (3A) Valve Controller, Near Field Communications, Metal Box, 1.5m Cable
Universal Input, Single Output Valve Controller, Near Field Communications

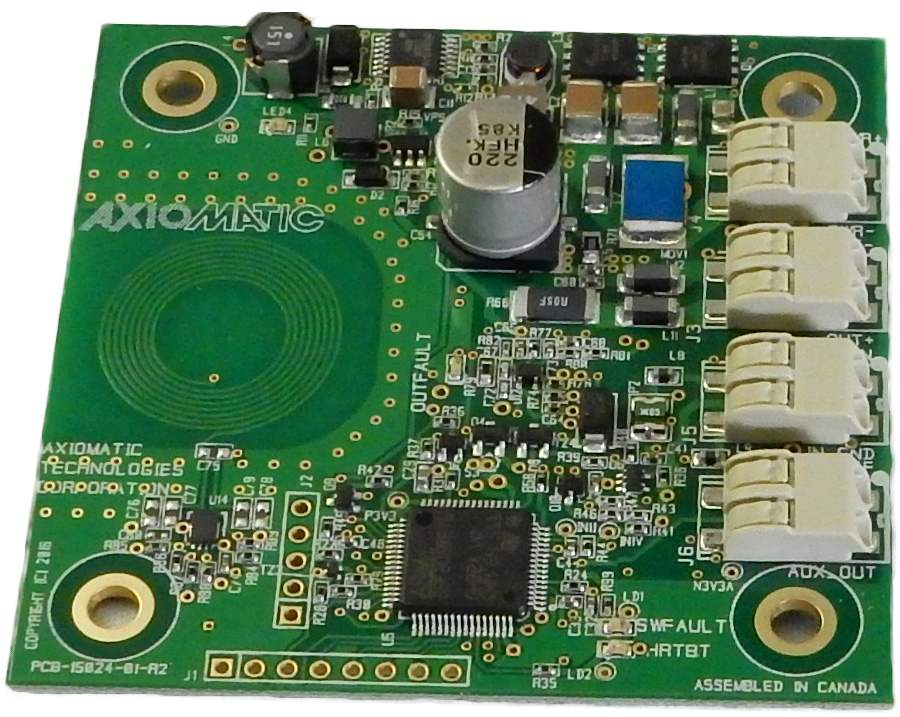

Universal Input, Single Output (5A) Valve Controller, Near Field Communications, PCB Assembly with Screw Terminals
