LIN/CAN Protocol Converter, CANopen®

Item # AX140603 — LIN/CAN Protocol Converter, CANopen®

All Downloads

The AX140603 protocol converter features data exchange between a LIN network and a CAN network and supports 35 LIN signals, 10 LIN unconditional frames, 4 CANopen® RPDO messages, and 4 CANopen® TPDO messages. The converter has 1 CANopen® port, 1 single-pin LIN 2.2A port, an STM32 F103 microcontroller, and operates with an input power of 12 or 24 VDC nominal (9 to 32 VDC). The LIN/CAN protocol converter is user configurable using standard CANopen® interface tools (not supplied). Additionally, and EDS file is provided for use with the CANopen® tools. The unit is fully sealed, compact, and rated IP67. The AX140603 LIN/CAN protocol converter is suitable for applications such as off-highway/mobile equipment and agricultural equipment. Please visit the LIN/CAN Converters category page for a comparison of salient features of our various LIN/CAN Converters.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

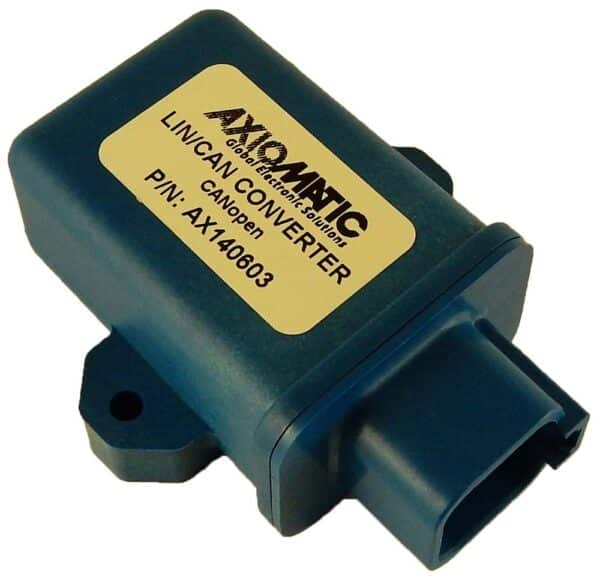

LIN/CAN Protocol Converter, CANopen®

Order Code

P/N: AX140603

Communications

1 CAN port (SAE J1939)
1 LIN port (LIN 2.2A)

Operating Voltage

12/24 VDC nominal (9-32 VDC)

Control Logic

Standard embedded software is provided.
The user programmable functionality is accessible via standard CANopen® configuration tools (not supplied).

Enclosure

Plastic housing, integral TE Deutsch equivalent connector
Nylon 6/6, 30% glass fill, ultrasonically welded

Connection(s)

1x 6-pin connector, equivalent to TE Deutsch P/N: DT04-6P

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Configurability

An EDS file is provided to interface with standard CANopen® configuration tools.

Applications

Agricultural equipment
Off-highway (mobile) equipment

Accessories

AX070119, Mating Plug Kit (DT06-6S, W6S, 6 Contacts)

More +

Downloads

Datasheet

AX140603 Datasheet

User Manual

AX140603 User Manual

EDS File

EDS-AX140603

2D Drawing

AX140603 Drawing

STEP File

AX140603 Housing Assembly

Compliance

RoHS - DoC - All

UKCA - DoC - AX1406XX

LVD - DoC - All
