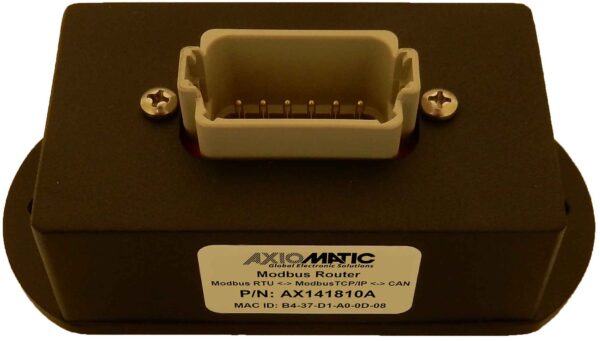

ModbusRTU <-> ModbusTCP/IP <-> CAN Bidirectional Protocol Converter

Item # AX141810A — ModbusRTU <-> ModbusTCP/IP <-> CAN Bidirectional Protocol Converter

All Downloads

The AX141810A features fast data exchange between a CAN network (SAE J1939), RS-485 (Modbus RTU), and Ethernet (Modbus TCP/IP). It offers bidirectional Modbus (RTU+TCP/IP) to CAN protocol conversion. It is user configurable using a web browser. This Modbus Router is enclosed in an IP67 rated enclosure with TE Deutsch connector.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX141810A

Communications

1 Ethernet port (Modbus TCP/IP)
1 isolated CAN port (SAE J1939)
1 isolated half-duplex RS-485 serial port (Modbus RTU)

Operating Voltage

12 VDC or 24 VDC Nominal (9 to 36 VDC)

Isolation

CAN isolation: 330 Vrms
RS-485 isolation: 300 Vrms

Enclosure

Encapsulated, aluminum housing with an integral TE Deutsch connector

Connection(s)

1 12-pin TE Deutsch connector, P/N: DT15-12PA

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

The parameters are configurable using a web browser.
The device IP address, netmask, and Modbus port are configurable via the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Applications

Communications interface between machine and master control systems

Accessories

AX070105, Mating Plug KIT (DT06-12SA, W12S, 12 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX141810A Datasheet

User Manual

AX1418X0A User Manual

2D Drawing

AX141810A Drawing

STEP File

AX141810 Housing Assembly

Compliance

RoHS - DoC - All
