Protocol Converter, 2 Isolated SAE J1939, Modbus RTU

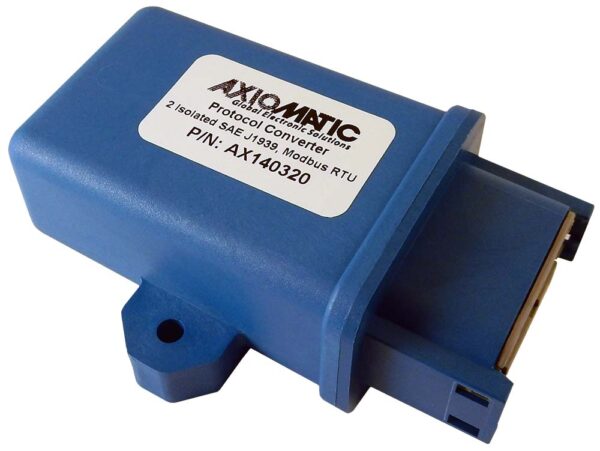

Item # AX140320 — Protocol Converter, 2 Isolated SAE J1939, Modbus RTU

All Downloads

The AX140320 Protocol Converter is a gateway between two SAE J1939 CAN ports and one Modbus RTU port. The protocol converter operates from a 12 VDC or 24 VDC nominal input power (9 to 36 VDC). The converter provides isolation only to the CAN bus ports (300 Vrms). AX140320 is user configurable via the Axiomatic Electronic Assistant. The units are fully sealed, compact, and rated IP67. The CAN to Modbus RTU converter is suitable for applications such as mobile/off-highway equipment, transport vehicles, and power genset control systems.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX140320

Communications

2 isolated CAN (SAE J1939) ports
1 non-isolated RS-422 / RS-485 port (Modbus RTU)

Operating Voltage

12 VDC or 24 VDC Nominal (9...36 VDC)

Enclosure

Molded Enclosure, integral connector
Nylon 6/6, 30% glass
Ultrasonically welded
3.54 x 2.75 x 1.31 inches (90.09 x 70.00 x 33.35 mm)
L x W x H including integral connector

Connection(s)

12 pin TE Deutsch style connector P/N: DT15-12PA

Protection Rating

IP67

Operating Temperature

-40 to 70 ºC
-40 to 158 ºF

Accessories

PL-DTM06-12SA, Mating Plug KIT (DTM06-12SA, WM-12S, 12 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX140320 Datasheet

User Manual

AX140X00 User Manual

2D Drawing

AX140320 Drawing

STEP File

12-Pin Ultrasonically Welded Housing

Compliance

EMC - DoC - AX14032XX

UKCA - DoC - AX14032XX

RoHS - DoC - All
