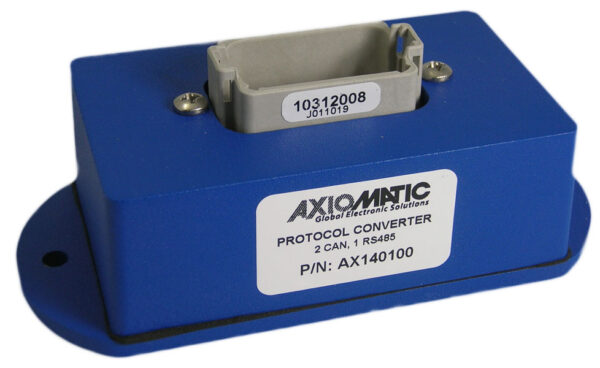

Protocol Converter, 2 SAE J1939, Modbus RTU, Fully Isolated, Marine Type Approved

Item # AX140100 — Protocol Converter, 2 SAE J1939, Modbus RTU, Fully Isolated, Marine Type Approved

All Downloads

The AX140100 Protocol Converter is an isolated gateway between two SAE J1939 CAN ports and one Modbus RTU port. The protocol converter operates from a 12 VDC or 24 VDC nominal input power (9 to 36 VDC). The converter provides isolation to all communication ports (300 Vrms). AX140100 is user configurable via the Axiomatic Electronic Assistant. The unit is fully sealed, compact, rated IP67, and carries Marine Type approvals. The CAN to Modbus RTU or J1587 converter is suitable for applications such as mobile/off-highway equipment, transport vehicles, and power genset control systems.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX140100

Communications

2 isolated CAN 2.0B

1 isolated RS-485 (Modbus RTU)

Operating Voltage

12Vdc or 24Vdc nominal

Enclosure

Aluminum Enclosure, Integral TE Deutsch Connector, Encapsulation
2.12 x 4.75 x 1.82 Inches
54.00 x 120.70 x 46.30 mm (W x L x H)

Connection(s)

12 pin TE Deutsch connector P/N: DT15-12PA.

Protection Rating

IP67

Operating Temperature

-40 to 70 ºC
-40 to 158 ºF

Applications

Power Generator Set Control Systems
SAE J1939 Engine Control Systems
Portable and Stational Power Generator Sets
Marine Control Systems

Accessories

AX070105, Mating Plug KIT (DT06-12SA, W12S, 12 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX140100 Datasheet

User Manual

AX140X00 User Manual

2D Drawing

AX140100 Drawing

STEP File

AX140100 Housing Assembly

Marine Type Approvals

BV - 40403/B1 BV

DNV - TAA0000377

Compliance

EMC - DoC - AX140X00

UKCA - DoC - AX140X00

RoHS - DoC - All
