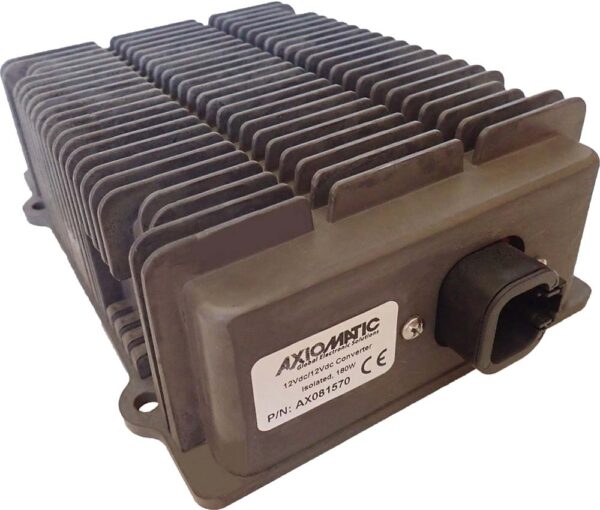

12VDC/12VDC, 180W Isolated Converter

Item # AX081570 — 12VDC/12VDC, 180W Isolated Converter

All Downloads

The 12VDC to 12VDC, 180W, Isolated power converter operates from 6-16VDC to 12VDC. It provides 180 Watts of power and has input and output isolation. The unit is enclosed in a IP67 rated anodized aluminum enclosure and is designed to meet the requirements of SAE J1455 and SAE J1113.

To purchase the AX081570 12VDC/12VDC, 180W Isolated Converter as a kit with a mating wire harness, please visit: AX081570K - KIT (AX081570 Converter, AX070103 Wire Harness)

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX081570 (Converter Only)

Input(s)

12 VDC Nominal (6-16 VDC)

Output(s)

12 VDC +/- 3% (180 W)

Output Current

15 A Continuous

Isolation

707 VDC Minimum

Enclosure

Cast Aluminum housing, integral gasket and connector
8.14 x 5.83 x 2.50 inches
L x W x H including integral connector

Connection(s)

1 connector equivalent to the TE Deutsch P/N: DTP15-4P

Protection Rating

IP67

Operating Temperature

-40 to 80 °C
-40 to 176 °F

Applications

Off-highway Equipment
Oilfield equipment
Power generator set control systems
Telecom

Accessories

AX070103, Wire Harness: DTP06-4S assembly + 2m Unterminated Wires (BLU)

AX070117, PL-DTP06-4S Mating Plug Kit: (DTP06-4S, WP4S, 4x 0462-203-12141)

More +

Downloads

Datasheet

AX081570 Datasheet

2D Drawing

AX081570 Drawing

Compliance

EMC - DoC - AX0815X0

UKCA - DoC - AX0815X0

RoHS - DoC - All
