KIT (AX080210A Converter, AX070543 Wire Harness)
Item # AX080210AK — KIT (AX080210A Converter, AX070543 Wire Harness)
AX080210AK provides one AX080210A DC-DC Converter and one AX070543 Wire Harness.
AX080210A is a DC-DC power supply that provides clean 24VDC power with 20 seconds of back-up time before turning off. Power from a battery or other source at 24VDC nominal is converted to a 24VDC output. The power converter features supercapacitors, an enable signal, and factory set timing parameters. Isolation is provided at 500VDC minimum. This DC/DC unit is fully sealed and enclosed to protect against moisture, shock and vibration. It is designed with reverse voltage protection and is suitable for application on charging/cranking battery-based systems such as off-highway, oilfield, and mining equipment. The power converter may directly power an Human Machine Interface (HMI) in a machine automation system. This power supply also provides isolation between the battery power and electronics downstream as well as graceful shutdown of HMI sophisticated automation systems.

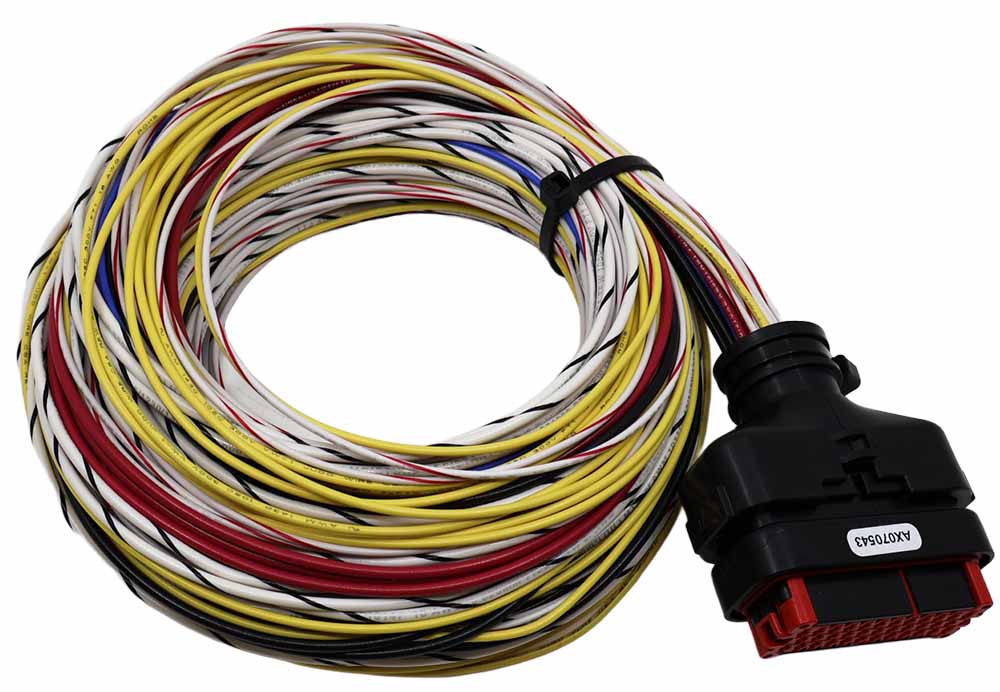

The AX070543 wire harness is 2m (6.5ft) with 14AWG unterminated leads and features a rugged 35-pin TE AMP connector. The connector on the wire harness is designed to mate with the TE AMP connector on AX080210A.
To purchase the AX080210A DC-DC Power Supply only, please visit: AX080210A — 24VDC to 24VDC, 150W Isolated Power Supply with 20 Second Back-Up.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
KIT (AX080210A Converter, AX070543 Wire Harness)
Order Code
P/N: AX080210AK
Output Voltage
24 VDC ± 2%
Output Current
6.25 A continuous
Output Power
150 W nominal
Isolation
500 VDC Minimum
Enclosure
Anodized Cast Aluminum housing, integral gasket and connector
8.14 x 11.12 x 3.11 inches
L x W x H including integral connectors
Connection(s)
1x 35-pin connector, TE AMP P/N: 1-7762231-1
Protection Rating
IP67
Operating Temperature
-40 to 65 ºC
-40 to 149 ºF
Applications
Charging/cranking battery-based systems used in off-highway, oilfield, and mining equipment
Provides isolation between the battery power an electronics downstream as well as graceful shutdown of HMI sophisticated automation systems
Datasheet
2D Drawing
3D Model
