KIT (AX080302 Converter, AX070174 Wire Harness)
Item # AX080302K — KIT (AX080302 Converter, AX070174 Wire Harness)
AX080302K provides one AX080302 isolated power converter (no enable) and one AX070174 wire harness.
The AX080302 DC-DC Converter has a typical efficiency of 93% and provides clean 24VDC power suitable for instrumentation, control networks, and process equipment. Power from a battery or other source in the range of 15 to 60 VDC (24, 36, or 48 VDC nominal) is converted to a 24 VDC output regulated at ± 3%. For operation under the most harsh and demanding conditions, the unit is IP67-rated, and fully sealed/enclosed to protect against moisture, shock, and vibration. The unit is designed with extremely rugged surge and transient suppression, in addition to sustained over/under-voltage protection, short circuit and overcurrent protection, and thermal protection for overtemperature.

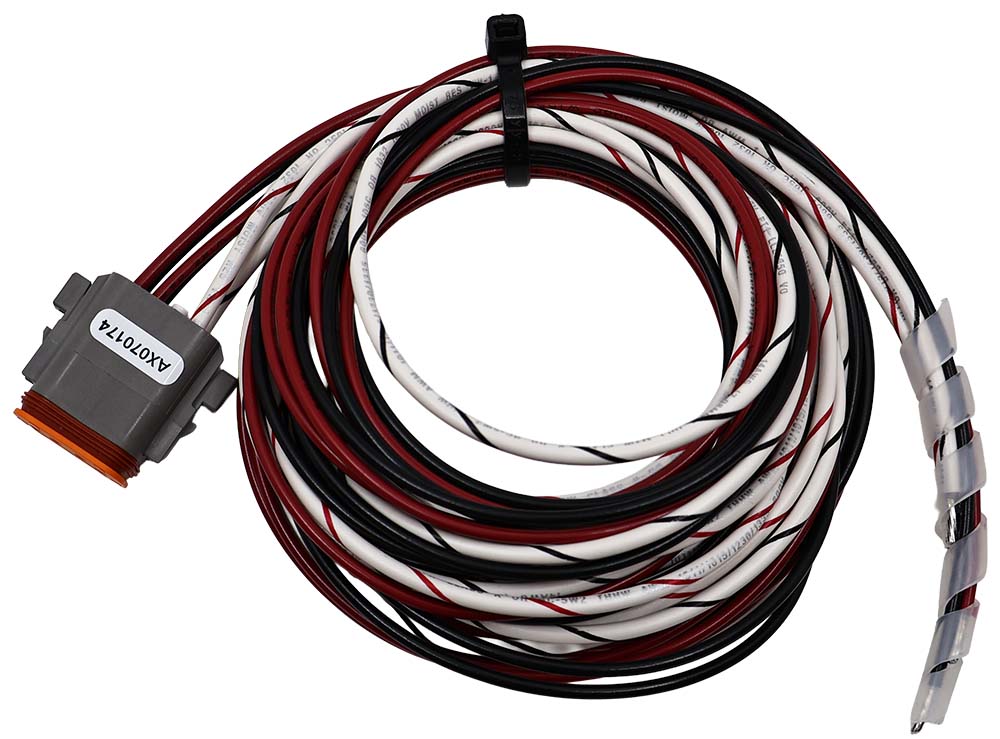

The AX070174 wire harness includes a 14 AWG, 2m cable with unterminated leads and an 8-pin TE Deutsch plug. The TE Deutsch plug is a mating connector for the AX080302 connector.
To purchase the AX080302 — 15-60VDC to 24VDC, 350W Isolated Converter, No Enable only, please visit: AX080302 — 15-60VDC to 24VDC, 350W Isolated Converter, No Enable.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
KIT (AX080302 Converter, AX070174 Wire Harness)
Order Code
P/N: AX080302K
Enable
Not Provided
Output Voltage
24 VDC ± 3%
Output Current
15 A continuous
Output Power
350 W nominal
Operating Voltage
24/36/48 VDC nominal (15-60 VDC)
Isolation
700 VDC minimum, all to chasis
700 VDC minimum, primary and secondary
Enclosure
Cast aluminum housing, integral gasket and connector
7.98 x 5.83 x 2.49 inches
L x W x H including integral connectors
Connection(s)
1x 8-pin connector, TE Deutsch P/N: DT13-08PA
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Compliance
Designed for EMI/EMC compliance
Applications
Industrial Machines for warehouses & factories
Lift equipment
Off-highway
Power conversion from wide-ranging input to stable 24/36/48 VDC
Datasheet
2D Drawing
3D Model
