24 VDC/24 VDC, 240 W Isolated DC-DC Converter

Item # AX080200 — 24 VDC/24 VDC, 240 W Isolated DC-DC Converter

All Downloads

The AX080200 is in planned obsolescent phase. It is being superseded by a newer model, the AX081530.

The AX080200 24 VDC/24 VDC, 240 W Isolated DC-DC Converter provides clean 24 VDC power suitable for instrumentation and control networks or process equipment. For operation under the most harsh and demanding conditions, the unit is fully sealed and enclosed to protect against moisture, shock and vibration. Power from a 24 VDC (13 to 32 VDC) battery or other source is converted to a 24 VDC output regulated to 2%. The DC-DC converter provides input and output isolation. The unit is designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With a nominal nameplate rating of 240 Watts of output power, the DC-DC Converter has a typical efficiency rated at 86%.

To purchase the AX080200 24 VDC/24 VDC, 240 W Isolated DC-DC Converter as a kit with a mating wire harness, please visit: AX080200K — KIT (AX080200 Converter, AX070103 Wire Harness).

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

24 VDC/24 VDC, 240 W Isolated DC-DC Converter

Order Code

P/N: AX080200

Output(s)

24 VDC +/- 2% (240 W)

Output Current

10 A continuous

Output Power

240 W nominal (260 W max.)

Operating Voltage

24 VDC nominal (13-32 VDC)

Isolation

Isolated from input, output, and chassis
500 VDC between primary and secondary

Enclosure

Encapsulated aluminum enclosure
7.20 x 6.25 x 3.00 inches
W x L x H excluding mating connectors

Connection(s)

1x 4-pin connector, TE Deutsch P/N: DTP04-4P-L012

Protection Rating

IP65

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

Charging/Cranking Battery Based Power Supply Systems
Off-Highway Equipment Control Systems
Power Conditioning for Controls & Instrumentation
SCADA Systems

Accessories

AX070103, Wire Harness: DTP06-4S assembly + 2m Unterminated Wires (BLU)

AX070117, PL-DTP06-4S Mating Plug Kit: (DTP06-4S, WP4S, 4x 0462-203-12141)

More +

Downloads

Datasheet

AX080200 Datasheet

Compliance

RoHS - DoC - All

LVD - DoC - All

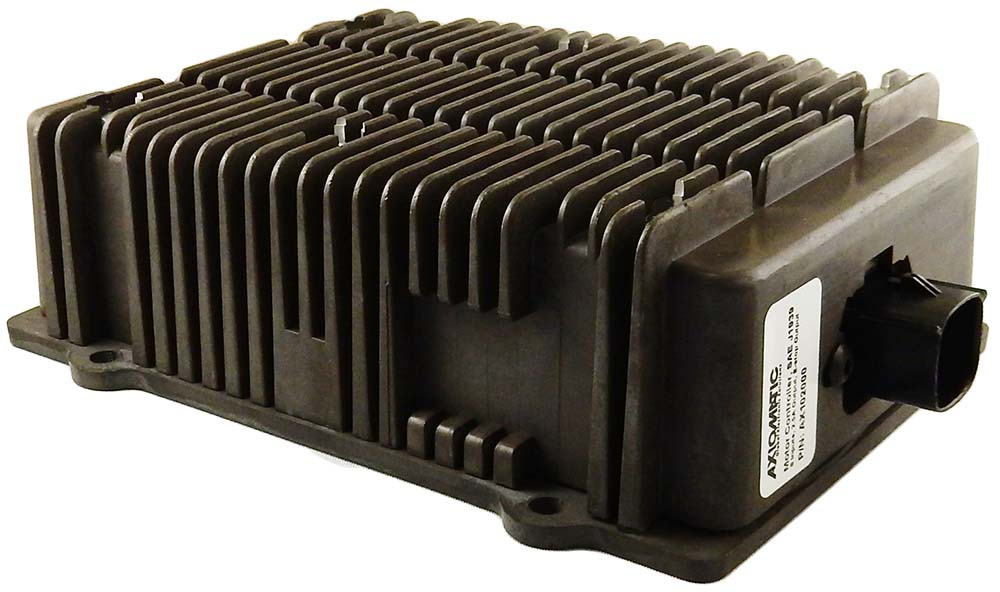

24 VDC/24 VDC, 240 W Isolated DC-DC Converter-main

All Product Categories

Automation

Power Management

Connectivity Solutions

Machine Control

Accessories

View Full Catalog

I/O Controls & Signal Converters View All

Engine Temperature Monitoring Solutions View All

Hydraulic Valve Drivers & Controllers View All

Signal Input Controllers with CAN View All

Signal Output Controllers with CAN View All

Signal Inputs, Signal Outputs, CAN Converters View All

I/O Modules with Relay Outputs and CAN View All

Signal Input Controllers with Modbus TCP/IP View All

LED Outputs CAN Controllers View All

LVDT and LVDT/RVDT Simulators, DIN Rail Mount View All

Multi-Channel Strain Gauge CAN Controllers View All

Wake-On-Charge Module, CAN View All

Multiple Cell Battery Voltage Monitors View All

PWM to Voltage or Current Signal Converters, DIN Rail Mount View All

4-20 mA Current to Current Converters, DIN Rail Mount View All

Voltage or Current to Bipolar Current Converters, DIN Rail Mount View All

1 Signal Input to CAN Converters View All

1 Universal Signal Input CAN Controllers View All

Magnetic Pickup Input to CAN Converters View All

Magneto-Resistive Speed Sensor Input Controller, CAN View All

RS-232 to CAN Converter with Two Digital Inputs View All

4 Universal Signal Inputs Controllers View All

4 Digital Inputs Controller with CAN and Ethernet View All

6 Digital Inputs Controllers View All

10 Universal Signal Input CAN Controllers View All

12 Channel Strain Gauge - CAN Controller View All

18 Digital Inputs CAN Controllers View All

CAN to Sine or Square Wave and PWM Output Controller View All

1 Resistive Output CAN Controller View All

1 Analog Signal Output CAN Controllers View All

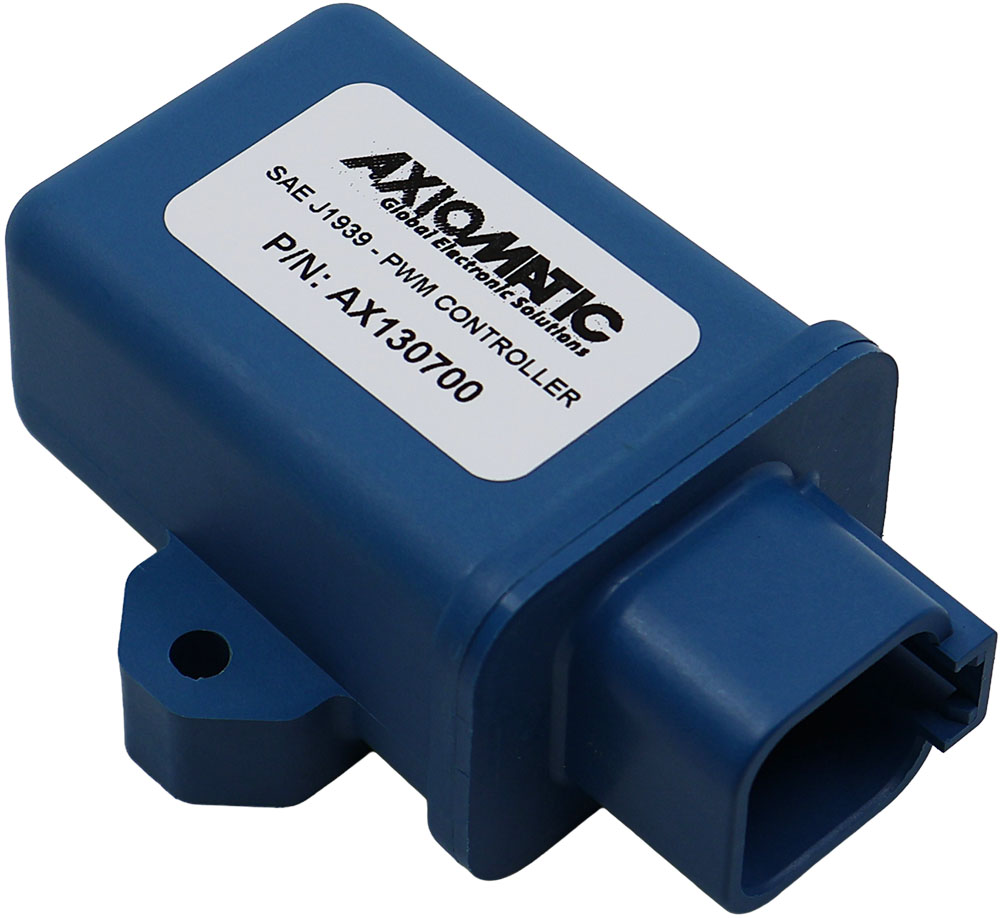

CAN to PWM Signal Controller View All
