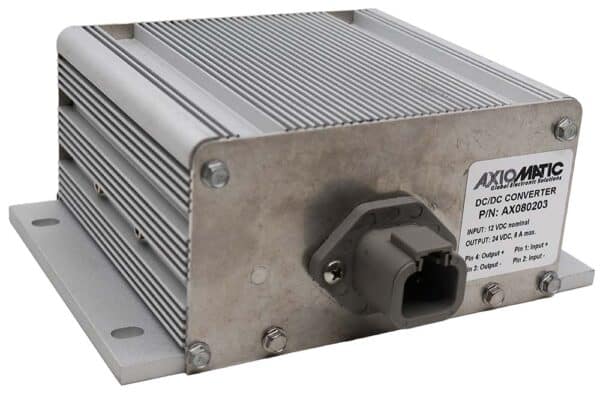

KIT (AX080203 Converter, AX070115 Wire Harness)

Item # AX080203K — KIT (AX080203 Converter, AX070115 Wire Harness)

All Downloads

The AX080203K is in planned obsolescent phase. It is being superseded by a newer model, the AX081540K.

AX080203K provides one AX080203 12 VDC/24 VDC, 192 W Isolated DC-DC Converter and one AX070115 wire harness.

The AX070115 wire harness is comprised of a mating plug, TE Deutsch P/N: DTP06-4S and a cable. The cable is 2m (6.5ft.) with 10 AWG unterminated wires. The wire harness provides the mating plug for the 4-pin connector located on the AX080203 converter.

The AX080203 12 VDC/24 VDC, 192 W Isolated DC-DC Converter provides clean 24 VDC power suitable for instrumentation and control networks or process equipment. For operation under the most harsh and demanding conditions, the unit is sealed and enclosed to protect against moisture, shock and vibration. Power from a 12 VDC (10 to 18 VDC) battery or other source is converted to a 24 VDC regulated output. The AX080203 converter provides input and output isolation. The unit is designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With an output power of 192 Watts, the AX080203 DC-DC converter has a typical efficiency rated at 86%.

To purchase the AX080203 12 VDC/24 VDC, 192 W Isolated DC-DC Converter only, please visit: AX080203 — 12 VDC/24 VDC, 192 W Isolated DC-DC Converter.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

1x 12 VDC/24 VDC, 192 W Isolated DC-DC Converter
1x Wire Harness: DTP06-4S Assembly + 2m 10AWG unterminated wires

Order Code

P/N: AX080203K

Output(s)

24 VDC +/- 0.5%

Output Current

8 A continuous

Output Power

192 W nominal

Operating Voltage

12 VDC nominal (10-18 VDC)

Isolation

Isolated from input, output, and chassis
500 VDC between primary and secondary

Enclosure

Encapsulated aluminum enclosure
7.20 x 6.25 x 3.00 inches
W x L x H excluding mating connectors

Connection(s)

1x 4-pin connector, TE Deutsch P/N: DTP04-4P-L012

Protection Rating

IP65

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

Off-highway Equipment
Oilfield equipment
Power generator set control systems
Telecom

More +

Downloads

Datasheet

AX080203 Datasheet

Compliance

RoHS - DoC - All
