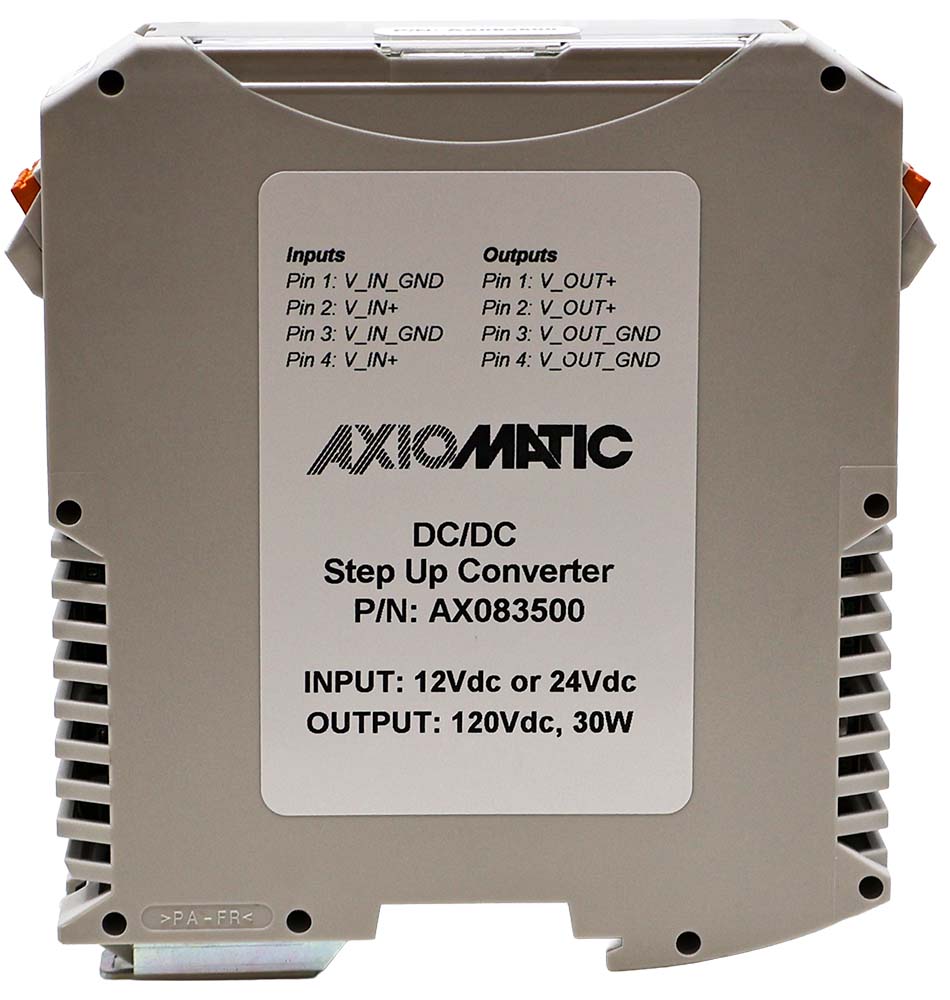

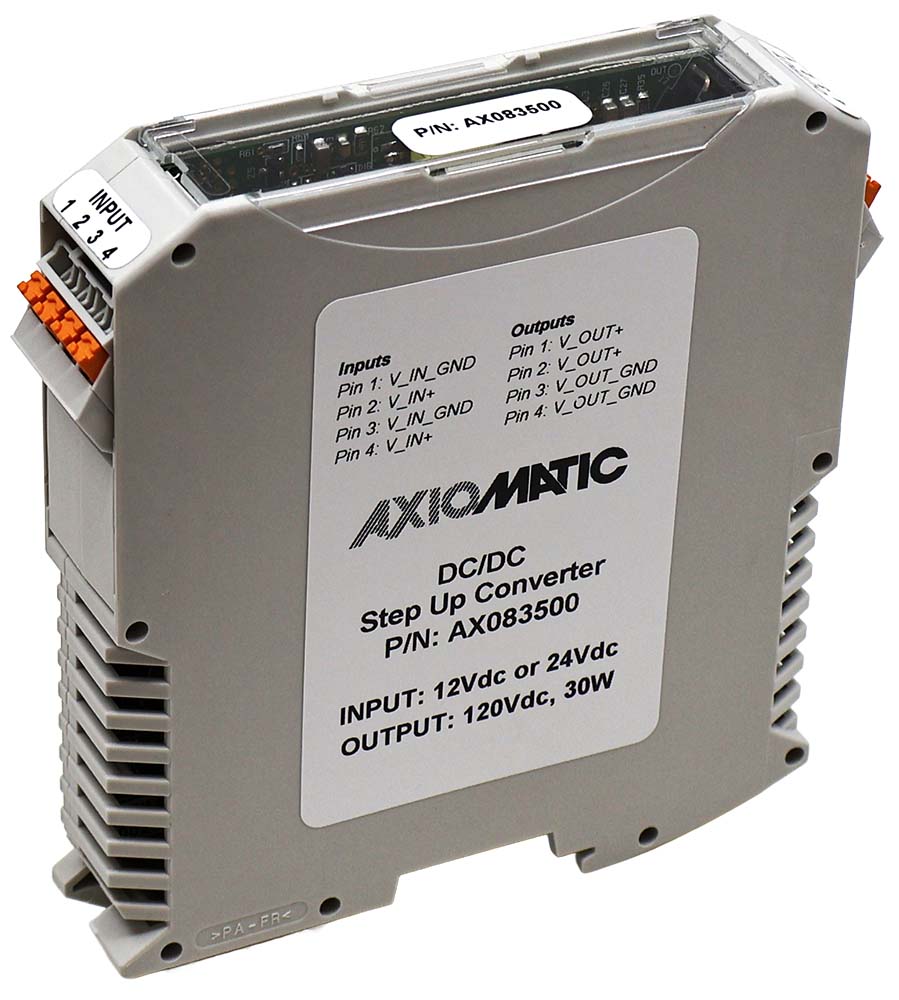

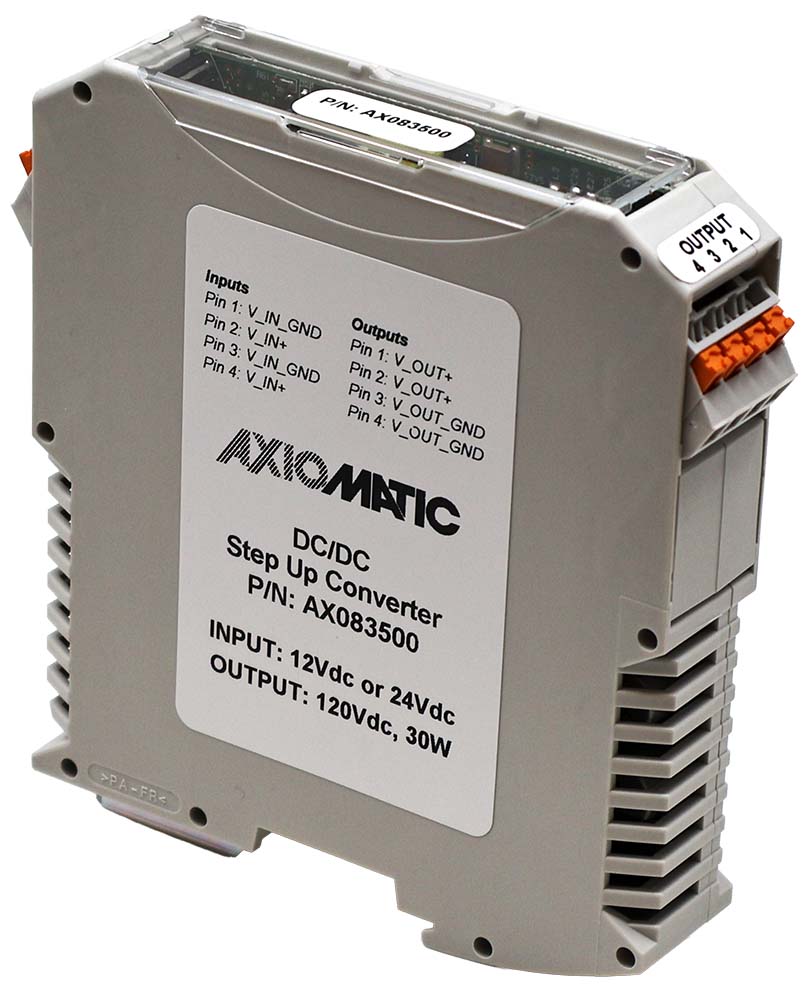

24VDC/120VDC, 30W Converter, DIN Rail Mount

Item # AX083500 — 24VDC/120VDC, 30W Converter, DIN Rail Mount

All Downloads

The AX083500 DC-DC converter provides clean 120 VDC power suitable for instrumentation and control networks and process equipment. For operation under the most harsh and demanding conditions, the unit is fully sealed and enclosed to protect against moisture, shock, and vibration. Power from a battery or other source in the range of 9-36 VDC is converted to a 120 VDC output regulated to 2%. Input and output isolation is provided. The unit is designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With a nominal nameplate rating of 30 Watts of output power, the DC-DC converter has an efficiency rated at >91%.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

24VDC/120VDC, 30W Converter, DIN Rail Mount

Order Code

P/N: AX083500

Output(s)

120 VDC +/- 2% (30 W)

Output Current

0.25 A continuous

Output Power

30 W nominal

Operating Voltage

12/24 VDC nominal (9-36 VDC)

Isolation

700 VDC
Isolated from input and output

Enclosure

PHO ME MAX 22.5 2-2 KMGY – 2713625 (vented)
DIN rail TH 35-7.5
Polyamide, UL94V0
China RoHS, cULus recognized

Connection(s)

4x Phoenix Contact PSPT 2,5/4-ST KMGY spring clamp connectors
Accepts 24-14 AWG wire.

Protection Rating

IP20

Operating Temperature

-40 to 70 °C
-40 to 158 °F

More +

Downloads

Datasheet

AX083500 Datasheet

2D Drawing

AX083500 Drawing

STEP File

4-Connector ME MAX Housing Assembly

Compliance

RoHS - DoC - All
