Home » Catalog » Power Management»Battery Chargers»24VDC/14VDC, 2A Battery Charger/Converter for SLA and AGM Batteries with CAN Bus»

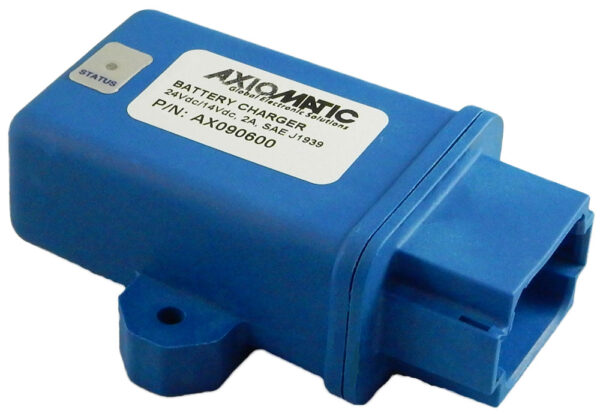

24VDC/14VDC, 2A Charger/Converter, SAE J1939

Item # AX090600 — 24VDC/14VDC, 2A Charger/Converter, SAE J1939

All Downloads

The 24VDC to 14VDC, 2A Charger/Converter is designed for application in off-highway equipment and for use in fire trucks and municipal vehicles. It has a typical efficiency of 91%, and is EMI/EMC compliant. The charger/converter features an LED indicator and offers a protection rating of IP67. It has 1 CAN port (SAE J1939), where the battery charge status is communicated over CAN. It is user configurable with the Axiomatic Electronic Assistant.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX090600 (SAE J1939)

Output(s)

14VDC, 2A Battery Charger for SLA or AGM Batteries

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s

Operating Voltage

26 to 36 VDC provides output
14V regulated to 2% @ 2 A load

Enclosure

Molded Enclosure, integral connector
Nylon 6/6, 30% glass, Ultrasonically welded
3.47 x 2.75 x 1.31 inches
L x W x H including integral connector

Connection(s)

TE Deutsch 8 pin Receptacle (P/N: DT04-08PA).

Protection Rating

IP67

Operating Temperature

-40 to 70 ºC
-40 to 158 ºF

Applications

Fire Trucks and Municipal Vehicles
Off-highway Vehicles

Accessories

AX070112, Mating Plug Kit (DT06-08SA, W8S, 8 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX090600 Datasheet

User Manual

AX090600 User Manual

2D Drawing

AX090600 Drawing

STEP File

AX090600 Housing Assembly

Compliance

RoHS - DoC - All
