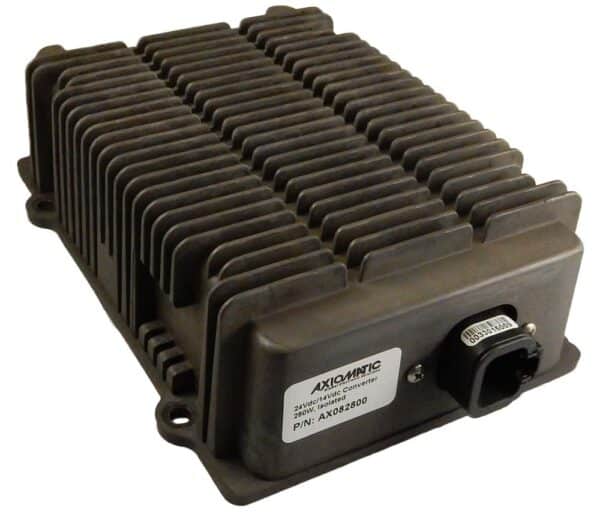

24VDC/14VDC, 15A Isolated Converter
Item # AX082800 — 24VDC/14VDC, 15A Isolated Converter
The DC/DC power converter accepts 24VDC nominal power input. It provides 14VDC output and 250 W of power. Input/output isolation is provided. It is a rugged power step down solution for harsh environments with machine battery power.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
P/N: AX082800 (Converter Only)
Input(s)
24 VDC Nominal (18-36 VDC)
Output(s)
14 VDC +/- 2% (250 W)
Output Current
18 A continuous
Isolation
707 VDC Minimum
Enclosure
Cast Aluminum housing, integral gasket and connector
8.14 x 5.83 x 2.50 inches
L x W x H including integral connector
Connection(s)
1 connector equivalent to the TE Deutsch P/N: DTP13-4P
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Off-highway Equipment
Oilfield equipment
Power generator set control systems
Telecom
Accessories
Datasheet
2D Drawing
STEP File
Compliance
