48VDC to 12 or 24VDC, 2A Battery Charger/Converter

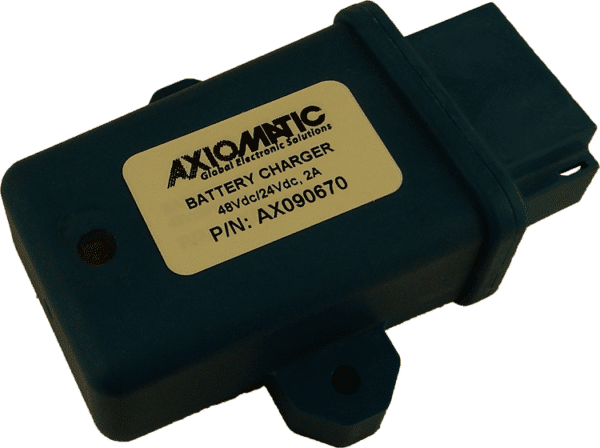

Item # AX090670 — 48VDC to 12 or 24VDC, 2A Battery Charger/Converter
The AX090670 Charge/Converter is Non-isolated. It has a typical efficiency of 91%. It accepts 30Vdc-60Vdc from a 24 V battery or 17VDC-60VDC for a 12 V battery. It outputs either 14 VDC or 27 VDC, 2A to charge a battery. It is EMI/EMC compliant, and user configurable with the Axiomatic Electronic Assistant USB-CAN converter and software.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
P/N: AX090670 (SAE J1939)
Output(s)
14 VDC +/- 2%
27 VDC +/- 2%
2A
Communications
1 CAN port (SAE J1939)
CAN Baud Rate
250 kbit/s
Operating Voltage
30VDC - 60VDC for 24V Battery
17VDC - 60VDC for 12V Battery
Enclosure
Molded Enclosure, integral connector
Nylon 6/6, 30% glass, Ultrasonically welded
3.47 x 2.75 x 1.31 inches
L x W x H including integral connector
Connection(s)
TE Deutsch 8 pin Receptacle (P/N: DT04-08PA).
Protection Rating
IP67
Operating Temperature
-40 to 70 ºC
-40 to 158 ºF
Applications
Off-highway Equipment
The Charger/Converter is Suitable for Application on Vehicle CAN Based Systems
Accessories
Datasheet
User Manual
2D Drawing
Compliance
KIT (AX081220 Converter, AX070538 Wire Harness, AX070539 Wire Harness)
