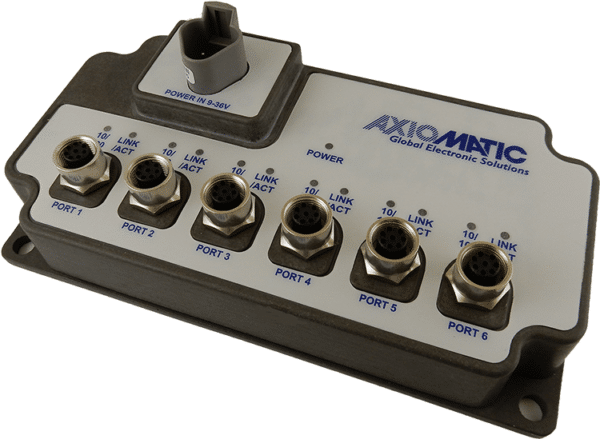

The Ethernet Switch operates as an unmanaged switch that is capable of handling communication of 6 different Ethernet capable devices. Each port can communicate up to 100mbps and has LED indicators showing the status of the ports. This module can be powered through either the power input connector, or through port 1. It can also power two external devices through ports 2 and 3, connecting them to the input power. Each of these two ports has over current protection that triggers at 1A.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
The Ethernet Switch operates as an unmanaged switch that is capable of handling communication of 6 different Ethernet capable devices. Each port can communicate up to 100mbps and has LED indicators showing the status of the ports. This module can be powered through either the power input connector, or through port 1. It can also power two external devices through ports 2 and 3, connecting them to the input power. Each of these two ports has over current protection that triggers at 1A.
Input(s)
1 Accessory Switch Input, 0-36Vdc
Switch enabled > 2.0 Vdc
Switch disabled < 0.8 Vdc
The input accessory switch can shut down the device and Port and 3 power sourcing.
If power is applied through port 1, input accessory switch is ignored.
Output(s)
Power output is available from Ports 2 and 3.
9…36Vdc (Vps)
1.4A current maximum
Ethernet Port(s)
6 ports
10/100 Mbit Ethernet compliant
Auto-MDIX LAN 10/100 Base-T
Up to 100m transmission distance
10 or 100 Mbps transmission speed
Operating Voltage
12VDC or 24VDC Nominal (8...36 VDC)
Enclosure
Cast aluminum, anodized
7.250 x 3.750 x 1.694 inches
184.15 x 95.25 x 43.04 mm (L X W X H)
Connection(s)
6 CONEC M12 8-pin connectors (A-coded), P/N: 43-01332 (Connectors 1-6).
Operating Temperature
-40 to 65 ºC
40 to 149 ºF
Compliance
CE MarkingCompliant to the EMC Directive
cURus to UL60950
EN60950-1
FCC Part 15
RoHS Directive
Applications
Mining Equipment
Off-highway Equipment
Datasheet
2D Drawing
