Home » Catalog » Power Management»DC-DC Converters»24VDC/24VDC, 500W Isolated Converter»

KIT (AX081200 Converter, AX070538 Wire Harness, AX070539 Wire Harness)

Item # AX081200K — KIT (AX081200 Converter, AX070538 Wire Harness, AX070539 Wire Harness)

All Downloads

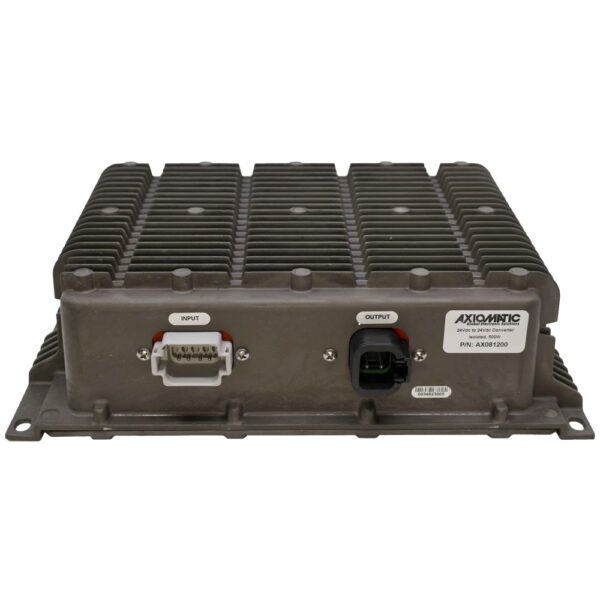

AX081200K provides one AX081200 24 VDC/24 VDC, 500 W Isolated Converter, one AX070538 wire harness, and one AX070539 wire harness.

The AX070538 wire harness is comprised of a mating plug, TE Deutsch P/N: DTP06-4S and a cable. The cable is 2m (6.5ft.) with 12 AWG unterminated lead wires. The AX070539 wire harness is comprised of a mating plug, TE Deutsch P/N: DTP06-8SA and a cable. The cable is 2m (6.5ft.) with 14 AWG unterminated lead wires. The wire harnesses feature the mating plugs for the AX081200 connectors. The AX070538 wire harness mates with the 4-pin output connector and the AX070539 wire harness mates with the 8-pin input connector.

The AX081200 24 VDC/24 VDC, 500 W Isolated Converter provides clean 24 VDC power suitable for instrumentation and control networks or process equipment. This converter provides over/under-voltage, short circuit, and reverse current protection. For operation under the most harsh and demanding conditions, the unit is fully sealed and enclosed to protect against moisture, shock and vibration. Power from a 24 VDC (13 to 36 VDC) battery or other source is converted to a 24 VDC output regulated to 3%. The DC-DC converter provides input and output isolation. The unit is designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With a nominal nameplate rating of 500 Watts output power, the DC-DC Converter has a typical efficiency rated at 91%.

To purchase the AX081200 24 VDC/24 VDC, 500 W Isolated Converter only, please visit: https://www.axiomatic.com/product/24vdc24vdc-500w-isolated-converter-ax081200/

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

KIT P/N: AX081200K (Includes Wire Harnesses)

Input(s)

24 VDC Nominal (13-36 VDC)

Output(s)

24 VDC +/- 3% (500 W)

Output Current

21 A Continuous

Isolation

700 VDC

Enclosure

Anodized Cast Aluminum housing, integral gasket and connector
8.12 x 11.12 x 3.11 inches
L x W x H including integral connectors

Connection(s)

1 TE Deutsch 8-pin DT13-8P connector
1 TE Deutsch 4-pin DT13-4P connector

Protection Rating

IP67

Compliance

For compliance of the device, please see the compliance downloads on the device page.

Applications

Charging/cranking battery based systems
Off-highway equipment
Oilfield equipment
Power generator set control systems
Telecom

More +

Downloads

Datasheet

AX081200 Datasheet

2D Drawing

AX081200 Drawing

STEP File

AX081220 Housing Assembly

Compliance

RoHS - DoC - All
