KIT (AX080300 Converter, AX070148 Wire Harness)
Item # AX080300K — KIT (AX080300 Converter, AX070148 Wire Harness)

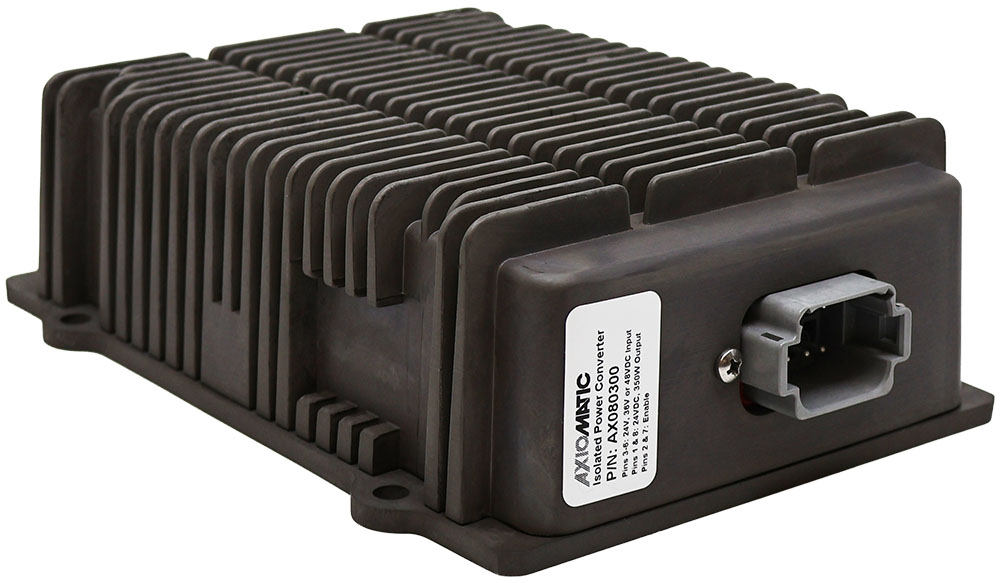

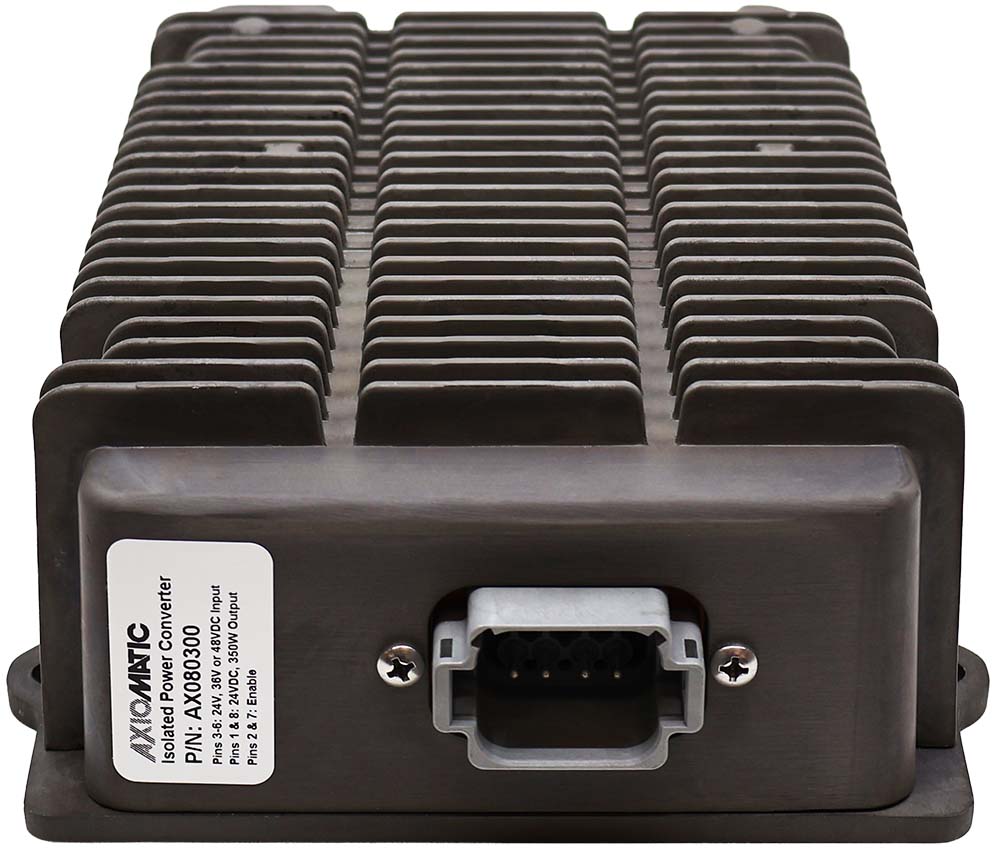

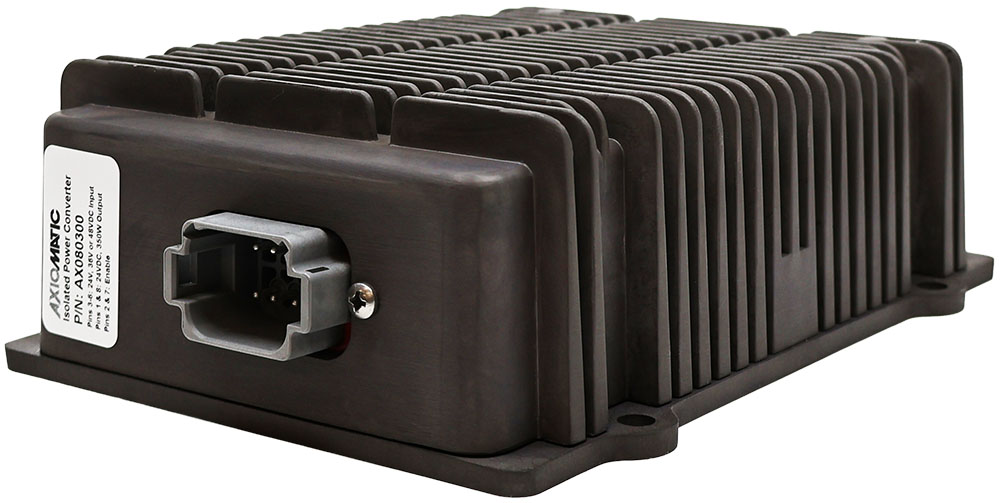

This DC/DC Converter has a typical efficiency of 93% and provides clean 24VDC power suitable for instrumentation, control networks, and process equipment. Power from a battery or other source in the range of 15-60VDC is converted to a 24VDC output regulated at ± 3%. For operation under the most harsh and demanding conditions, this IP67 rated unit is fully sealed and enclosed to protect against moisture, shock, and vibration. The unit is designed with extremely rugged surge and transient suppression, in addition to sustained over/under voltage protection, short circuit and overcurrent protection, and thermal protection for overtemperature.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
KIT P/N: AX080300K (Includes Wire Harness)
No. of Input(s)
1
Input(s)
24/36/48 VDC Nominal (15-60 VDC)
No. of Output(s)
1
Output(s)
24 VDC +/- 3% (350 W)
Output Current
15 A Continuous
Isolation
700 VDC minimum, All To Chasis
700 VDC minimum, Primary To Secondary
Enclosure
Cast Aluminum housing, integral gasket and connector
Connection(s)
1 8-pin connector equivalent to the TE Deutsch P/N: DT13-08PA
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Compliance
For compliance of the device, please see the compliance downloads on the device page.
Applications
Industrial Machines for warehouses & factories
Lift equipment
Off-highway
Power conversion from wide-ranging input to stable 24/36/48 VDC
Datasheet
2D Drawing
STEP File
Compliance
