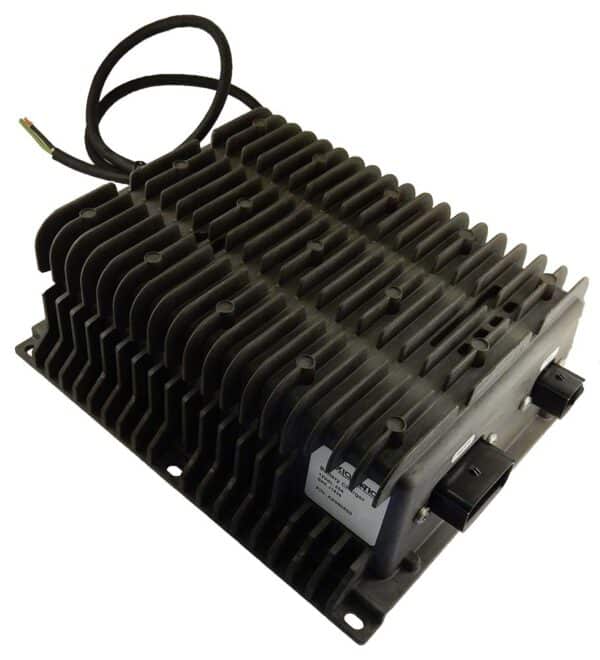

24VDC, 15A Battery Charger, SAE J1939

Item # AX090560 — 24VDC, 15A Battery Charger, SAE J1939

All Downloads

The 24 VDC Battery Charger charges a 24 VDC lead-acid battery as well as other battery chemistries. It is designed for mounting in a vehicle or in a stationary engine and managed heat dissipation so no fan cooling is required. It accepts a power supply voltage of 120, 208, or 240 VAC nominal. The charger monitors a remote battery temperature sensor for safe operation and prevention of battery overheating. It transmits charger condition, line connection status, battery voltage, and charge current over CAN bus. Standard CAN interface tools can configure the charger to suit the application (not supplied).

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX090560 (SAE J1939)

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s

Operating Voltage

120/208/240 VAC Nominal (95-260 VAC)

Power Supply Mode

5-24 VDC output, up to 15 A
User configurable

Battery Charger Mode

Voltage: 10-30 VDC Depending on the Charging Mode and User Configuration
Current: 0.5-15 ADC Depending on the Charging Mode and User Configuration

Control Logic

Standard embedded software is provided.
The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Enclosure

ACD12 Die Cast Aluminum Enclosure and Lid, Hard Anodized to MIL-A-8625
Molded EPDM Gasket
11.83 x 8.74 x 3.88 inches
L x W x H excluding power cable assembly

Connection(s)

1 4-pin Molex 194280006
1 6-pin Molex 1943506011
1 12-pin Molex 194280001

Protection Rating

IP67

Operating Temperature

-40 to 60°C (-40 to 140°F) for inputs 90-170 VAC
-40 to 70°C (-40 to 158°F) for inputs >170 VAC

Applications

Off-highway Vehicles
Lift Equipment
Electric Vehicles
Fleet and Utility Vehicles
Emergency Vehicles
Power Gensets
Oil and Gas Equipment
Electric Utility
Substation Switchgear

Accessories

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX0905X0 Datasheet

User Manual

AX0905X0 User Manual

2D Drawing

AX090560 Drawing

STEP File

AX090560 Housing Assembly

Compliance

RoHS - DoC - All
