24VDC-24VDC Converter, 13A Isolated

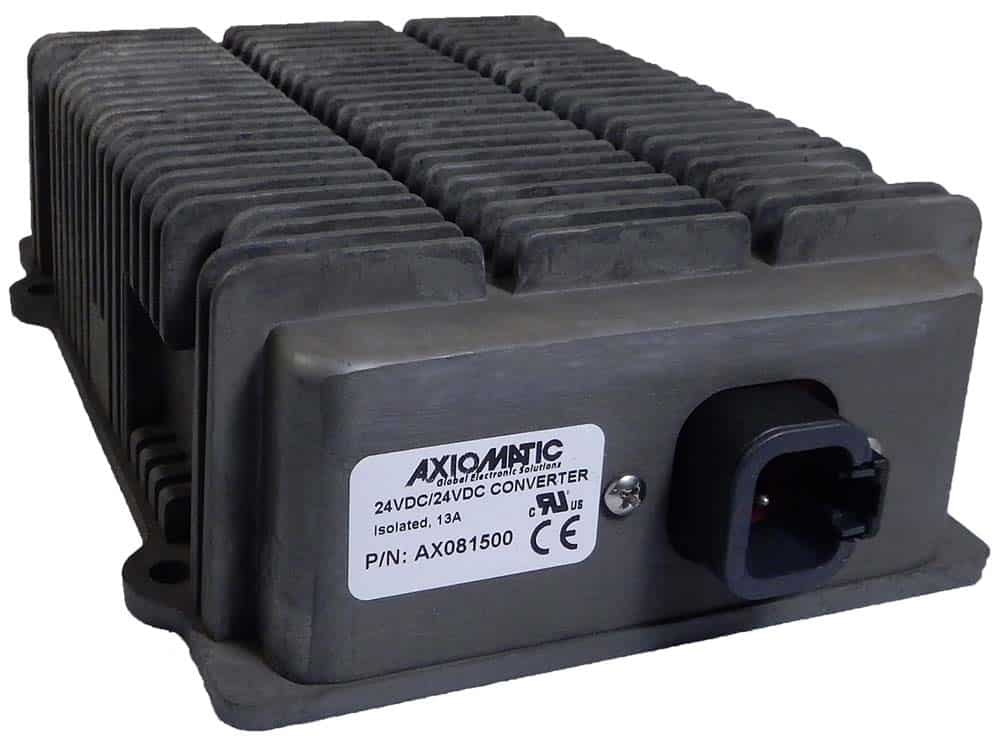

Item # AX081500 — 24VDC-24VDC Converter, 13A Isolated

All Downloads

The DC-DC Converter provides clean 24VDC power suitable for instrumentation and control networks or process equipment. For operation under the most harsh and demanding conditions, the unit is fully sealed and enclosed to protect against moisture, shock and vibration. Power from a battery or other source in the range of 18-36VDC is converted to a 24VDC output regulated to 4%. Input and output isolation is provided. The unit is designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With a nominal nameplate rating of 312 Watts output power, the DC-DC Converter has an efficiency rated at 93%.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX081500 (Converter Only)

Input(s)

24 VDC Nominal (18-36 VDC)

Output(s)

24 VDC +/- 4% (240 W)

Output Current

10 A continuous

Isolation

707 VDC Minimum

Enclosure

Cast Aluminum housing, integral gasket and connector
8.14 x 5.83 x 2.50 inches
L x W x H including integral connector

Connection(s)

1 connector equivalent to the TE Deutsch P/N: DTP13-4P

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Compliance

CB Test Certified
CE marking
cURus recognized
SAE J1455 & SAE J1113 Compliant

Applications

The DC/DC converter is suitable for rugged applications.

Accessories

AX070103, Wire Harness: DTP06-4S assembly + 2m Unterminated Wires (BLU)

AX070117, PL-DTP06-4S Mating Plug Kit: (DTP06-4S, WP4S, 4x 0462-203-12141)

More +

Downloads

Datasheet

AX081500 Datasheet

2D Drawing

AX081500 Drawing

Step Files (3D)

AX081500 Housing Assembly

Compliance

EMC - DoC - AX0815X0

UKCA - DoC - AX0815X0

UL - CA-10998-A1-UL

RoHS - DoC - All
