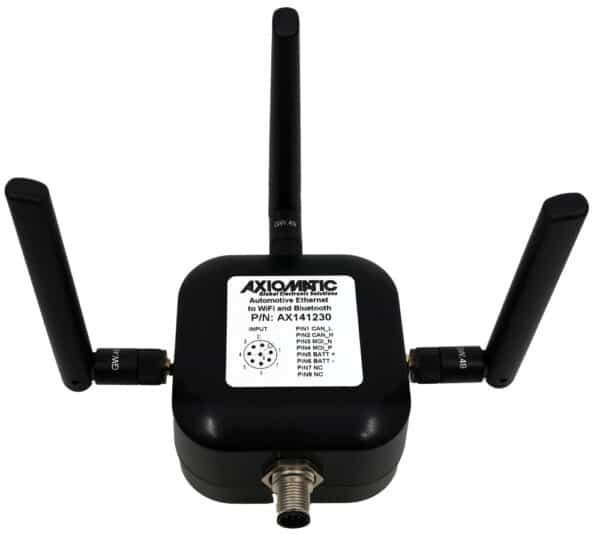

Automotive Ethernet to Wi-Fi and Bluetooth® CAN Converter
Item # AX141230 — Automotive Ethernet to Wi-Fi and Bluetooth® CAN Converter
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
Automotive Ethernet to Wi-Fi and Bluetooth® Converter
Order Code
P/N: AX141230
Communications
1 Automotive Ethernet port (100 Mbps or 1000 Mbps)
1 CAN port (CAN 2.0A/CAN 2.0B)
1 external Bluetooth® antenna (connection range up to 50m)
2 external Wi-Fi antennas (connection range up to 50m)
CAN Baud Rate
Auto-baud rate detection
Automotive Ethernet Port(s)
1 port (100 or 1000 Mbps)
Ethernet IEEE 802.3bw for 100BASE-T1 (previously known as BroadR-Reach)
Ethernet IEEE 802.3bp for 1000BASE-T1
Master or Slave functionality configurable
Bluetooth
Dual-Mode Bluetooth® V5.3
Operating Voltage
12/24 VDC nominal (8-36 VDC)
Control Logic
User programmable functionality using the CAN2BLE Configuration Application and the Electronic Assistant (EA) P/N: AX070502 or P/N: AX070506K
Enclosure
Molded enclosure, integral TE Deutsch equivalent connector
Nylon 6/6, 30% glass, laser welded
Connection(s)
1 8-pin M12 male connector, A-coded
Protection Rating
IP67
Operating Temperature
-30 to 85 °C
-22 to 185 °F
Accessories
CAN2BLE Configuration Application for Android devices
CAN2BLE Configuration Application for iOS devices
AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)
AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)
2D Drawing
Compliance
