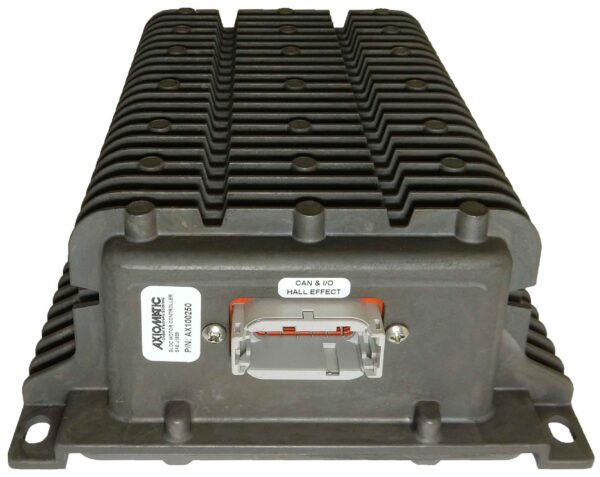

40A BLDC Motor Controller, SAE J1939, 250 kbps

Item # AX100250 — 40A BLDC Motor Controller, SAE J1939, 250 kbps

All Downloads

The 40 A DC Motor Controller features Unidirectional or bi-directional BLDC motor control with hall effect sensor feedback. A user configurable enable function can be mapped to any of the 2 digital inputs or a CAN message. 1 current output (2.5 A proportional or hotshot digital) is available to drive accessories such as hydraulic valves or relays for machine control or safety interlock. Use the Electronic Assistant for setpoint configuration. The drive is IP67 rated.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX100250 (SAE J1939)

Input(s)

1 digital/frequency/PWM input
2 universal signal inputs, user configurable from the following:
Voltage
Current
Frequency
PWM
Digital

Output(s)

1 output is selectable from the following:
Proportional Current
Hotshot Digital
PWM Duty Cycle
On/Off Digital
Half-Bridge Output
1 voltage or current output is provided

Output Current

40 A Continuous @ 12 VDC Nominal
40 A Continuous @ 24 VDC Nominal
40 A Continuous @ 48 VDC Nominal

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s

Operating Voltage

12/24/48 VDC Nominal (9-65 VDC)

Control Logic

Standard embedded software is provided.
The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Enclosure

Encapsulated in an anodized aluminum extrusion with gasket

Connection(s)

1 2-pin connector equivalent to the Molex P/N: 19436-0213
1 3-pin connector equivalent to the TE Deutsch P/N: HD10-3-96P
1 12-pin connector equivalent to the TE Deutsch P/N: DTM13-12PA

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

Motor variable speed, position and/or flow control in Lift Equipment
Electric Vehicles for Material Handling
Cranes and Hoists
Hydraulic Tail Lifts and Winches
Golf Carts
Military Equipment
Mobile Pumps
Hydraulic Power Packs

Accessories

AX070450, Mating Plug Kit

AX070502, Electronic Assistant KIT (AX070501 USB-CAN, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions

More +

Downloads

Datasheet

AX100250 Datasheet

User Manual

AX100250 User Manual

2D Drawing

AX100250 Drawing

STEP File

AX100250 Housing Assembly
