KIT( AX081510 Converter, AX070115 Wire Harness)
Item # AX081510K — KIT( AX081510 Converter, AX070115 Wire Harness)

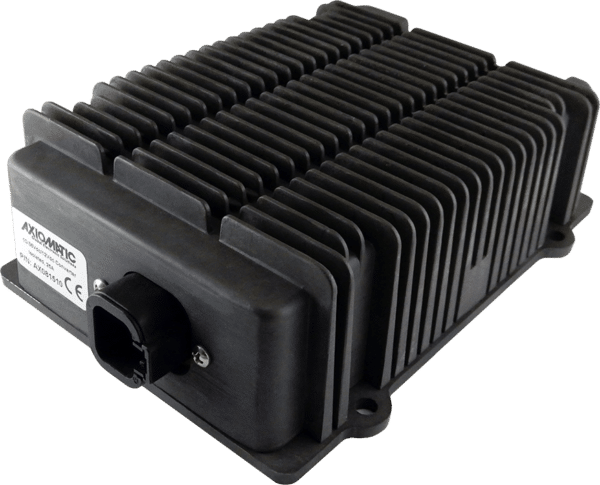

The DC/DC power converter accepts from 10-36VDC voltage input. It provides 12VDC, 300W of power to control systems. The power supply is enclosed in an IP67 rugged enclosure for installation in a outdoor machines and vehicles with charging/cranking battery based power.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
KIT P/N: AX081510K (includes wire harness)
Input(s)
24 VDC Nominal (10-36 VDC)
Output(s)
12.5 VDC +/- 3% (300 W)
Output Current
25 A continuous
Isolation
707 VDC Minimum
Enclosure
Cast Aluminum housing, integral gasket and connector
8.14 x 5.83 x 2.50 inches
L x W x H including integral connector
Connection(s)
1 connector equivalent to the TE Deutsch P/N: DTP13-4P
Protection Rating
IP67
Operating Temperature
-40 to 80 °C
-40 to 176 °F
Compliance
For compliance of the device, please see the compliance downloads on the device page.
Applications
Off-highway Equipment
Oilfield equipment
Power generator set control systems
Telecom
Datasheet
2D Drawing
Step Files (3D)
Compliance
