KIT (AX083800 Converter, AX070152 Wire Harness, AX070153 Wire Harness, AX070154 Wire Harness)
Item # AX083800K — KIT (AX083800 Converter, AX070152 Wire Harness, AX070153 Wire Harness, AX070154 Wire Harness)
The DC/DC converter accepts 12VDC battery input and provides reliable, short circuit and overload protected, adaptable output of 25VDC, 750 Watts. This power supply is extremely rugged and versatile owing to its wide input voltage range. It provides a stable DC supply when installed on battery-powered machine or vehicle. Voltage is stepped up and sensitive electronic equipment is protected. It is IP67 rated.
To purchase the AX083800 12VDC to 25VDC, 750W Converter only, please visit: AX083800 - 12VDC to 25VDC, 750W Converter
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Order Code
P/N: AX083800K (includes wire harnesses)
No. of Input(s)
1
Input(s)
12 VDC Nominal (5.5-17 VDC)
No. of Output(s)
1
Output(s)
25 VDC +/- 2% (750 W)
Output Current
30 A Continuous

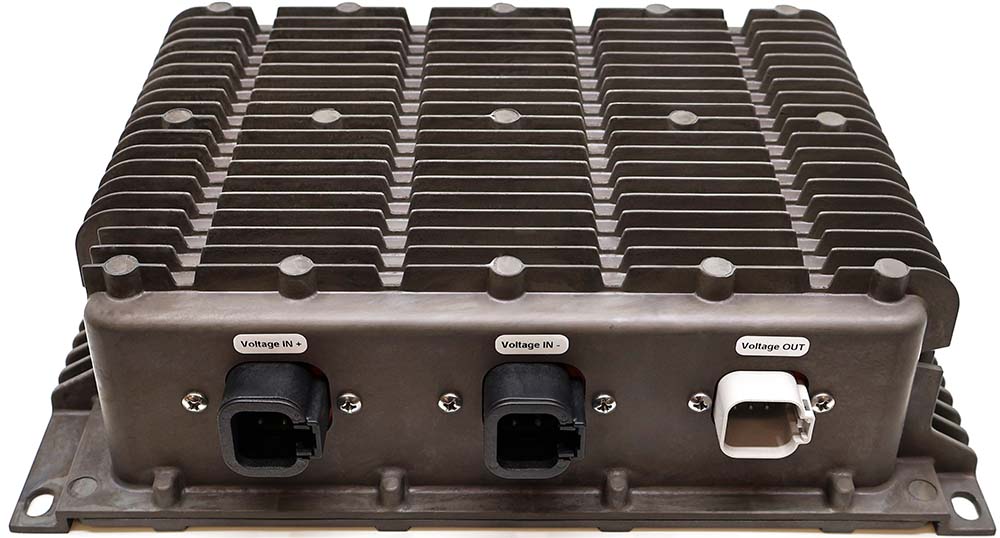

Enclosure
Cast Aluminum housing, integral gasket and connector
8.14 x 11.12 x 3.11 inches
L x W x H including integral connectors
Connection(s)
2 4-pin connectors equivalent to the TE Deutsch P/N: DTP13-4P
1 6-pin connector equivalent to the TE Deutsch P/N: DTP13-6P
Protection Rating
IP67
Operating Temperature
-40 to 70 °C
-40 to 158 °F
Compliance
For compliance of the device, please see the compliance downloads on the device page.
Applications
Off-highway equipment
Oilfield equipment
Power generator set control systems
Datasheet
2D Drawing
STEP File
Compliance
